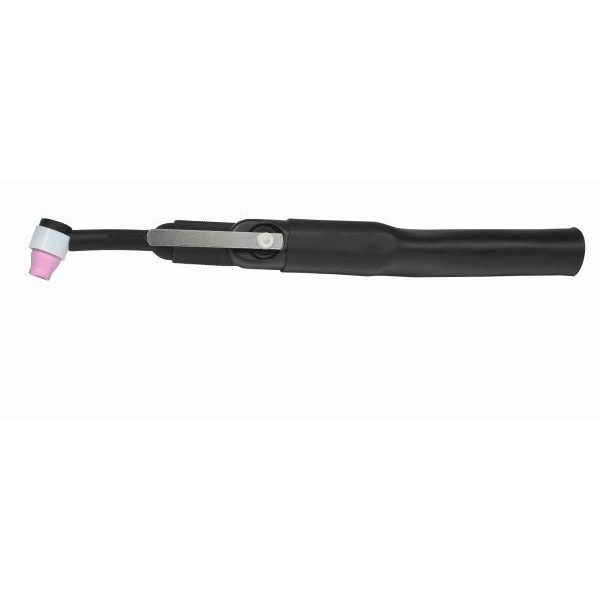

Standard TIG torch 80A - TG 24 Air cooled
14414
€204.00
TTC
Torch for TIG welding type TG 24, gas (air) cooled with rigid body.
Get register and you will earn 204 points/€10.20
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 204 points that can be converted into a voucher of €10.20.
Availabilities for Pick-up in store :
Air-cooled TIG torch for confined spaces
TG24 Rigid-Body TIG Torch — 80 A DC / 50 A AC
This universal TIG torch allows welding on small workpieces and in confined spaces. Assembled in France by STARWELDING, it operates from 1 to 80 A DC and 1 to 50 A AC, with a 4 or 8 m hose assembly.

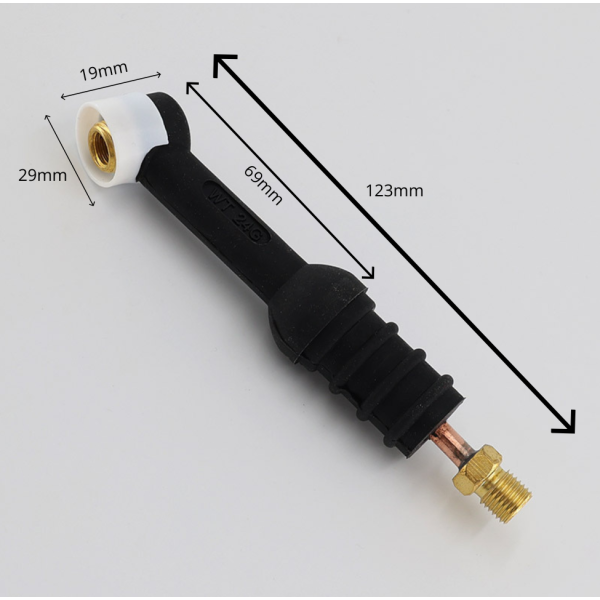

Easy Access to Small Workpieces
The rigid body suits precision work in tight spaces. The electrode is clamped using the consumables at the front of the head, with no rear back cap.
Air Cooling
The torch requires no liquid cooling unit. It is designed for welding currents from 1 to 80 A DC and 1 to 50 A AC.
Connections to Suit Your Welder
The standard configuration includes a 2-pin electrical plug and a 12 × 100 (D) screw-on gas connector. When ordering, specify your welder model so the appropriate electrical plug can be selected.
Available Lengths and Variants
Choose a 4 or 8 m hose assembly to suit your workspace. A CSF version with a super-flexible hose assembly is also available, as well as a water-cooled TG24 version.
TG24-Specific Consumables
- Short, long or gas lens nozzles
- Collet bodies from 0.5 to 2.4 mm
- Collets from 0.5 to 2.4 mm
- Gas lenses from 0.5 to 2.4 mm
- Ring
- Front clamping, with no rear back cap
Why Choose This Model?
A Torch for Confined Spaces
A rigid-body configuration for small workpieces, featuring air cooling and assembly in France.
- 1 to 80 A DC / 1 to 50 A AC
- 4 or 8 m hose assembly
- TG24-specific consumables
- Specify your welder model when ordering
