Ultima-TIG-S Tungsten Grinder
53139
€2,598.00
TTC
Discover the Ultima-TIG-S, our innovative workshop sharpener for tungsten electrodes, ideal for TIG and plasma welding.
Get register and you will earn 2598 points/€129.90
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 2598 points that can be converted into a voucher of €129.90.
Availabilities for Pick-up in store :
Tungsten electrode grinding for TIG and plasma

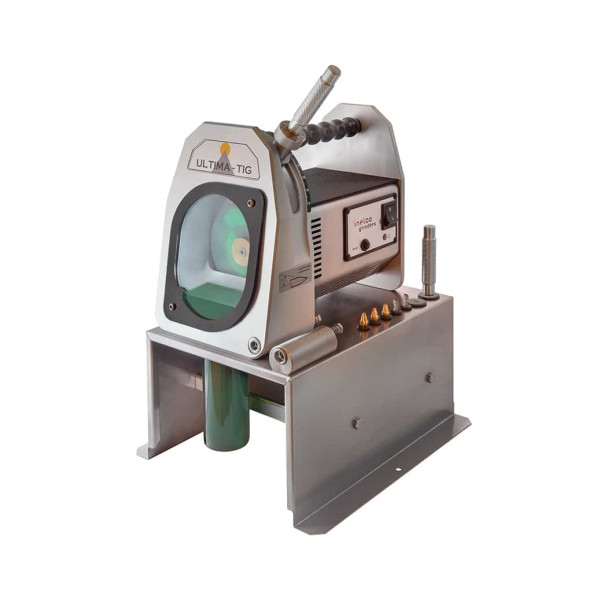

Ultima-TIG-S Wet Tungsten Electrode Grinder
The Ultima-TIG-S grinds tungsten electrodes from 0.8 to 8 mm in diameter. Its diamond grinding disc and liquid bath limit heat build-up during grinding, while the enclosed chamber with a dust collector helps contain grinding dust.
Liquid-Cooled Grinding
The liquid bath protects the electrode against overheating. Combined with the diamond disc, it produces a smooth surface while limiting electrode wear.

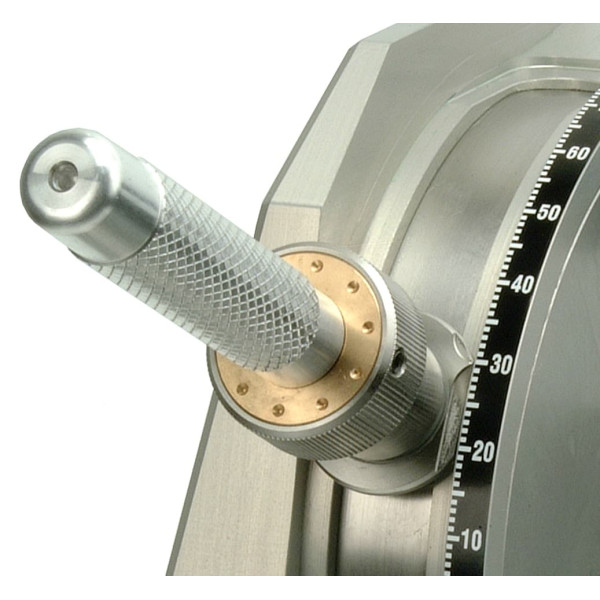

Adjustable Angle and Centred Tip
Set the grinding angle from 7.5° to 90°, equivalent to a tip angle of 15° to 180°. The electrode holder ensures centring, and the 90° setting allows a flat tip to be produced.

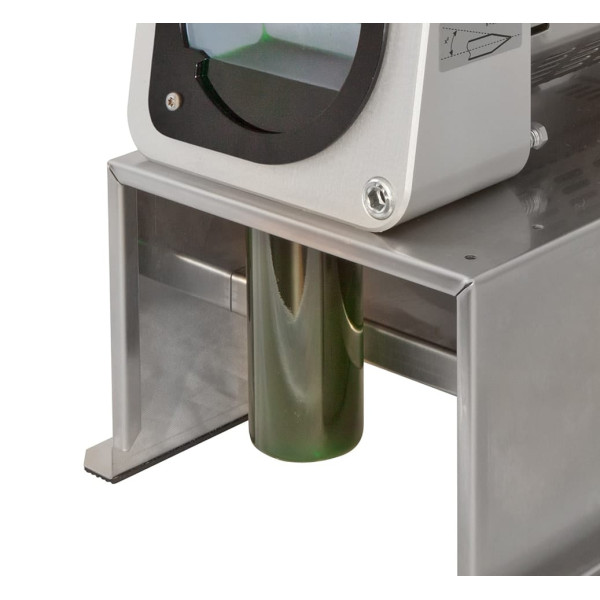

Enclosed Chamber with Dust Collection
The disposable container collects dust generated during grinding. This design makes dust collection easier and helps protect the operator.

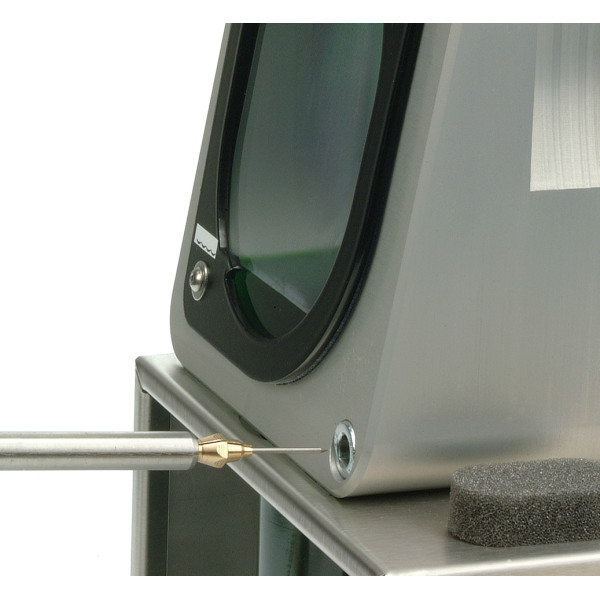

Suitable for Short Electrodes
The minimum electrode length is 15 mm in the standard configuration and 8 mm with special collets. The 280 W motor drives the disc at 6,000 rpm, providing a grinding speed of 31 m/s.
Standard Kit Contents
- Grinder with table, diamond disc and grinding fluid
- Electrode holder for diameters up to 4 mm
- Electrode holder for diameters from 4.8 to 8 mm
- Collets: Ø 1.6 / 2.4 / 3.2 / 4.8 / 5.3 / 6.4 mm
Available power supply versions: 110 V or 220 V, 50/60 Hz. Check which version suits your installation.
Why Choose This Model?
Precision Grinding with Heat Control
A wet grinding solution for preparing tungsten electrodes, adjusting their geometry and limiting material removal.
- Electrodes from Ø 0.8 to 8 mm
- Grinding angle from 7.5° to 90°
- Diamond disc and liquid bath
- Enclosed chamber with dust collector
88897422
Data sheet
| Equipment for welding machines | Grinder |
|---|
53139
