Economy Arm Economic Extraction Arm
52564
€810.59
TTC

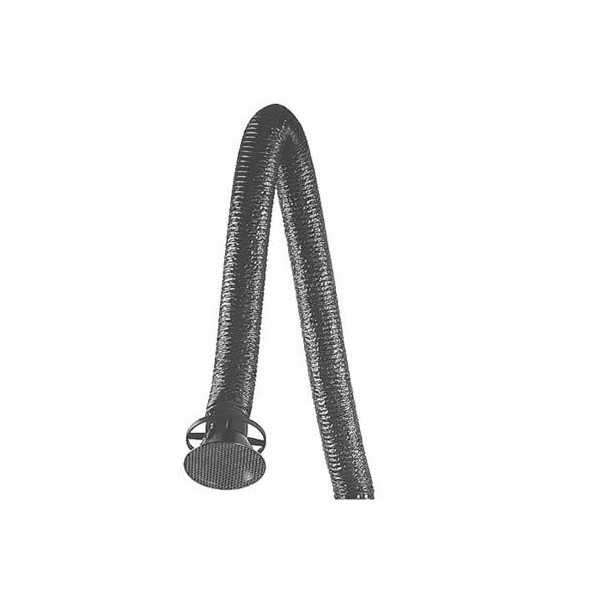

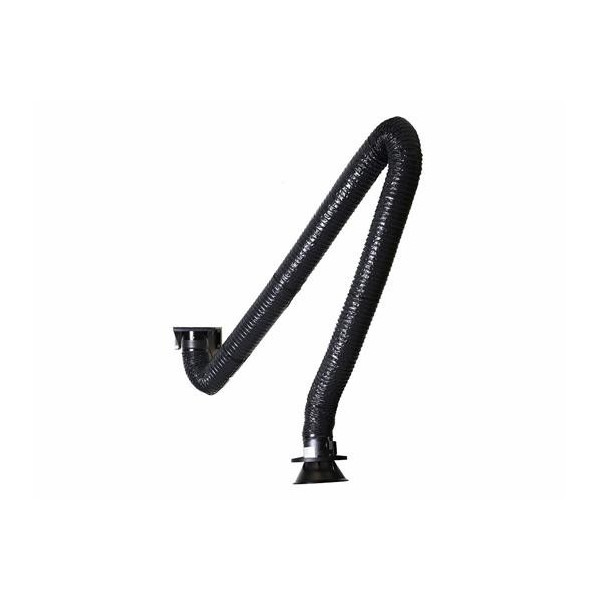

The Economy Arm is a powerful and innovative smoke and dust extraction arm. This model has a spring-loaded balancer mechanism with friction brake that guarantees quiet operation within the working radius. The nozzle is fitted with a safety grid and a closing damper.
Get register and you will earn 811 points/€40.55
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 811 points that can be converted into a voucher of €40.55.
Availabilities for Pick-up in store :
Fume and dust capture at source
PLYMOVENT Economy Arm Extraction Arm — 3 or 4 Metres
The Economy Arm is a fume extraction arm available separately for the MobileGo mobile unit. Available in 3- or 4-metre lengths, it positions capture close to the welding area using a spring-balanced mechanism with a friction brake.
Smooth Positioning and Support
The spring-balanced mechanism makes the arm easier to move within its working radius. The friction brake helps maintain the selected position during operations.
360° Orientation
The adjustable arm and 360° ring handle make the hood accessible from different positions. Operators can adapt the capture point to the workpiece and the source of fumes.
Equipped Extraction Hood
The nozzle features a safety grille and a shut-off device. The recommended airflow for the arm is 600–1,200 m³/h, supplied by a compatible extraction system.
Two Available Versions
The 3-metre EA-3/S version weighs 16.5 kg, while the 4-metre EA-4/S version weighs 20 kg. Choose the length according to the required reach and your installation layout.
Welding Applications
- MIG/MAG — GMAW
- TIG
- Flux-cored arc welding — FCAW
- Stick welding — MMAW
Why Choose This Model?
An Easy-to-Position Arm for Your Work Area
The Economy Arm simplifies positioning for source capture. It does not generate suction on its own: its effectiveness depends on the associated system and hood position.
- Choice of length: 3 or 4 m
- Spring-balanced mechanism with friction brake
- 360° orientation
- Recommended airflow: 600–1,200 m³/h
