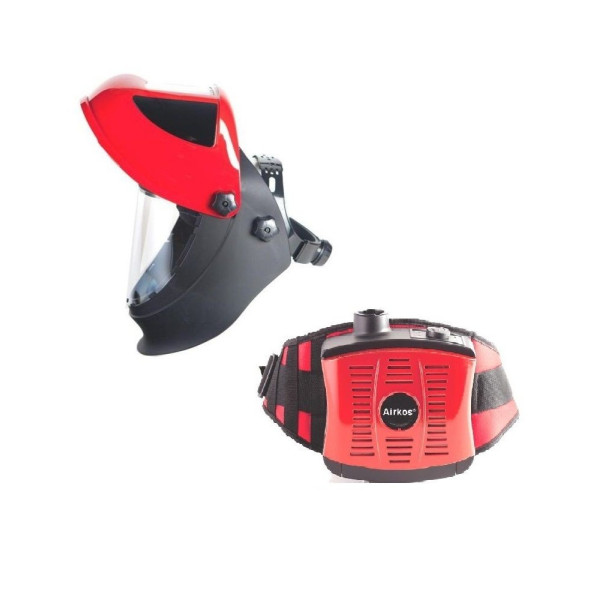

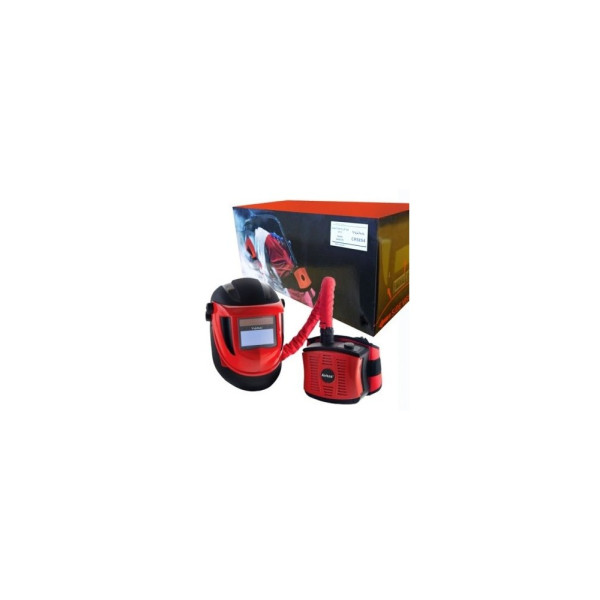

WELTEK Navitek Ventilated Welding Helmet with S4 Lens and Airkos Filtration System
Complete set: filtration unit + ventilated helmet with auto-darkening lens. Adjustable shade 9-13.
Designed for the protection of welders and boilermakers during ARC/MIG-MAG/TIG welding and grinding operations. Suitable for light to moderate use. Excellent value for money.
The NAVITEK helmet, with its large grinding visor combined with the AIRKOS respiratory protection, meets safety standards and enhances working conditions.
Bestselling product.

Your cart will total 882 points that can be converted into a voucher of €44.10.
Description du produit :
Exposure to welding fumes irritates the eyes, nose, mouth, and lungs. Long-term chronic exposure to welding fumes is known to cause lung diseases. Common risks include occupational asthma and cancer. Pneumosiderosis is another occupational lung disease that welders may develop. This particular disease occurs when workers, such as welders, are chronically exposed to iron dust. Due to the risks and dangers of exposure to welding fumes and their carcinogenic nature, the ideal exposure level is zero and should be the target. Many systems can help prevent these harmful particles from entering a welder’s respiratory zone, thus protecting your lungs, health, and overall well-being. The best way to limit health risks is to eliminate or reduce exposure to these fumes. Often, this will mean investing in quality equipment like a ventilated helmet or other devices such as fume extractors or mobile fume extractors.
A ventilated helmet like the Navitek offers one of the best overall protections against welding fumes. It features an additional PAPR unit, where fresh air is filtered and introduced into the helmet during welding or grinding operations. This air pressure differential helps to keep welding fumes out of your respiratory zone, keeping your airways and lungs clean and clear.
Need a polycarbonate visor that ensures filtration of solid and liquid particles (PSL)?
HD Soudage offers you the Navitek Airkos ventilated helmet from Weltek, which provides superior working comfort. The Navitek visor is an innovative product that protects your lungs from welding fumes and gases, thanks to the sealed facial gasket on the Navitek helmet, which limits TH2 penetration of contaminants inside the helmet.
The Airkos contains a reusable filter that does not need to be changed with every use. The visor has 2 alarms: the filter clogging alarm, which informs you of the necessary filter change, and the audible and visual alarm, which informs you of the low battery level.

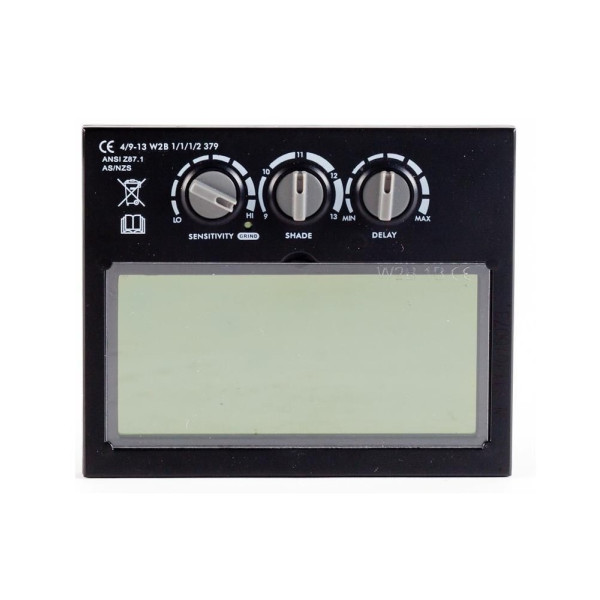

The S4 Electronic Lens
Sensors: 4 independent sensors with a fast reaction time (0.2ms)
Optical Class: 1/1/1/2
Adjustable Welding Shade: DIN 9 to DIN 13
The AIRKOS Ventilation
This assisted ventilation motor includes: Respiratory protection - 2 airflow rates; a filter clogging alarm; a low battery alarm; particle filter, pre-filter, lithium-ion battery, European charger; padded belt, air hose with fireproof cover; fireproof face seal; air diffuser.
Technical Specifications:
Arc Sensors | 4 - Independent |
Reaction Time | 0.2 ms |
Viewing Area | 93x43 mm |
Technology | Twisted Nematic |
Power Supply | Solar |
Digital Display | No |
Grinding | Clear visor |
Warranty:
|
|
Standards |
EN 166, EN 175 EN 379, EN 12941 |
Light Shade | DIN 4 |
Consumables:
Navitek:
Outer protection for the helmet (Ref: AX 4000)
Protection for the electronic lens (Ref: AX 2250)
Large clear visor (Ref: AX 3415)
Airkos:
Filter (Ref: CR 7050)
Pre-Filter (Ref: CR 7060)
Data sheet
Welding hoods | Ventilated hoods |
---|
Specific References
ean13 | 3701342605102 |
---|
