Pipe Cutting System 360 PRO SERIES
53153
€4,765.00
TTC

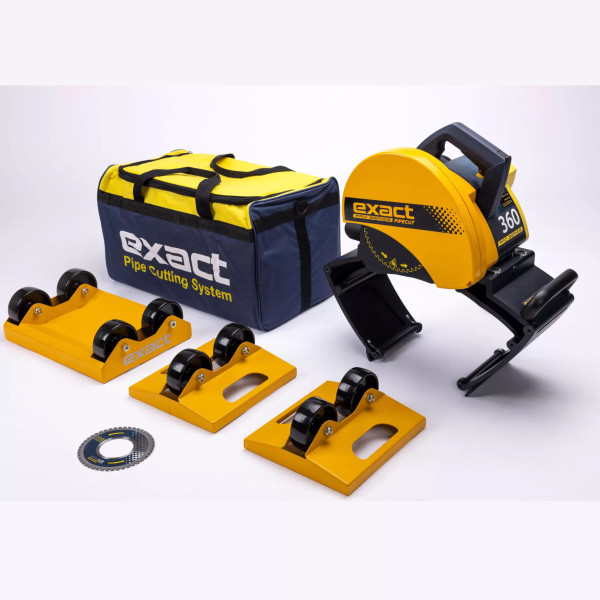

The Exact PipeCut 360 Pro Series kit combines a portable saw for pipes from 75 to 360 mm, a pre-installed Cermet 165 blade and three pipe supports.
Get register and you will earn 4765 points/€238.25
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 4765 points that can be converted into a voucher of €238.25.
Availabilities for Pick-up in store :
Multi-material cutting for pipework preparation
Exact PipeCut 360 Pro Series — A Versatile Saw for Professionals
The Exact PipeCut 360 Pro Series pipe saw supports preparation and cutting work on pipes with outside diameters from 75 to 360 mm. Its 2500 W power in the 230 V version, laser positioning aid and adjustment mechanism help produce straight cuts. The kit includes a pre-installed Cermet 165 blade and three supports to organise the cutting workstation.
Multiple materials with a suitable blade
The machine can cut steel, stainless steel, cast iron, ductile iron, copper, fibreglass, multilayer materials and plastic. Each application requires an appropriate blade: the supplied Cermet 165 blade does not replace the specialised blades needed for all these materials.
Capacity for thick-walled pipes
The stated maximum wall thickness reaches 20 mm in steel at 230 V and 12 mm at 120 V. For plastic pipes, the maximum capacity is 50 mm, using a suitable configuration and blade.
Laser positioning and cutting assistance
The laser helps identify the cutting point, while the adjustment mechanism allows alignment to be adjusted. Indicator lights inform the operator about motor load and overheating. Electronic overload protection complements these assistance features.
Portable equipment ready to set up
The saw weighs 17.5 kg and can be moved between workstations. The supplied double support and two single supports assist with pipe positioning. The 5 mm and 2 mm hex keys are attached to the machine to keep them accessible.
Technical specifications
- Brand: Exact
- Model: PipeCut 360 Pro Series
- Pipe outside diameter: 75–360 mm
- Power in the 230 V version: 2500 W
- Power in the 110–120 V version: 2200 W
- Saw weight: 17.5 kg
- Maximum steel wall thickness at 230 V: 20 mm
- Maximum steel wall thickness at 120 V: 12 mm
- Maximum plastic wall thickness: 50 mm
- Two no-load speeds: 1900 / 2885 rpm
- Mounting bore: 62 mm
- Stated load capacity with the three supports: 465 kg
Kit contents
- Exact PipeCut 360 Pro Series saw
- Pre-installed Cermet 165 blade
- One double pipe support
- Two single pipe supports
- 5 mm and 2 mm hex keys attached to the machine
- User manual
Stated indicative service life for the Cermet 165 blade: approximately 60 cuts. This estimate depends on factors including the material, pipe dimensions and operating conditions; it does not represent a guaranteed blade service life.
Find this model in our selection of pipe saws for pipework preparation. To complete your workstation setup, also explore our pipe supports for on-site work.
Why choose this model?
A versatile configuration for your pipework
A portable saw with laser positioning, overload protection and included supports to prepare cuts in different materials using the appropriate blade.
- Outside diameters: 75–360 mm
- Power: 2500 W at 230 V
- Two speeds: 1900 / 2885 rpm
- Cermet 165 blade and three supports included
1216273
1 Item
Data sheet
| Use | Professional |
|---|---|
| Material | Stainless steel Steel |
| Equipements | Saw |
| Diameter | 75 - 360 mm |
53153
Documentation
Useful documents to help you prepare for installation and use.
No documents are available at the moment.
