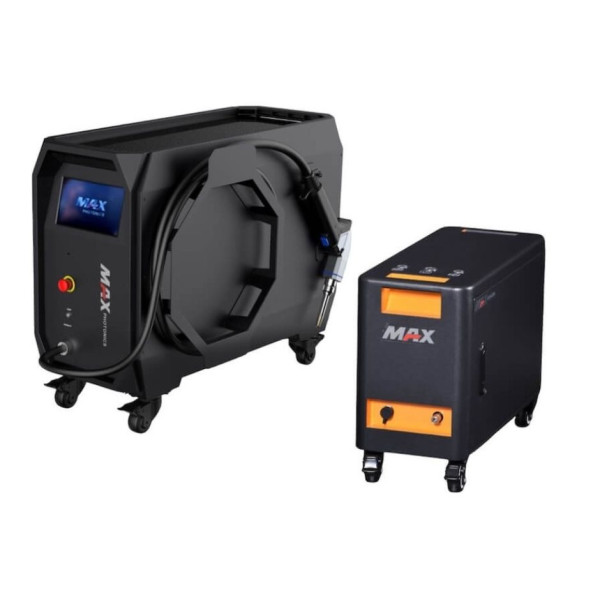

Manual Laser Welding Machine MA1-45 1200W
53570
€19,008.00
TTC
Compact, powerful, energy-saving. The MA1-45 THEO by MAX PHOTONIC changes the game. Welds up to 4.5mm deep on all metals, 100% duty cycle at 1200W, and up to 90% lower power consumption. Precision, speed, and quality in one compact system.
Get register and you will earn 19008 points/€950.40
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 19008 points that can be converted into a voucher of €950.40.
Availabilities for Pick-up in store :
Handheld laser welding for multiple metals
MA1-45 THEO by MAX PHOTONIC Laser Welder — 1200 W
The MA1-45 delivers 1200 W at a 100% duty cycle for welding steel, galvanised steel, stainless steel, aluminium, brass and copper. Its intuitive interface and 32 predefined parameter sets simplify setup.
Penetration and Welding Speed
Stated performance includes penetration up to 4.5 mm and welding speeds up to four times faster than TIG. These results depend on the material, joint configuration and welding conditions.

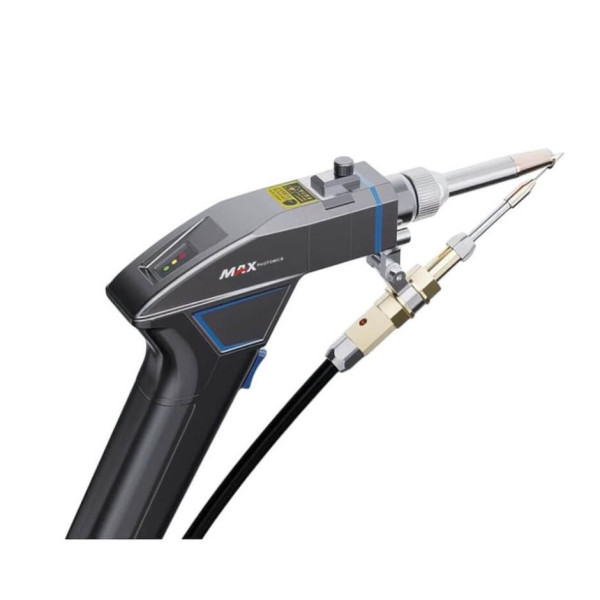

680 g F150 Welding Gun
The F150 laser gun accepts 0.8, 1.0, 1.2 and 1.6 mm wires. It provides a weld width of up to 4 mm, with a compact design that makes positioning on the workpiece easier.
Reduced Consumption and Rework
The process aims to reduce distortion and post-weld rework. Claimed electricity savings range from 80 to 90% compared with conventional processes, depending on the comparison conditions.

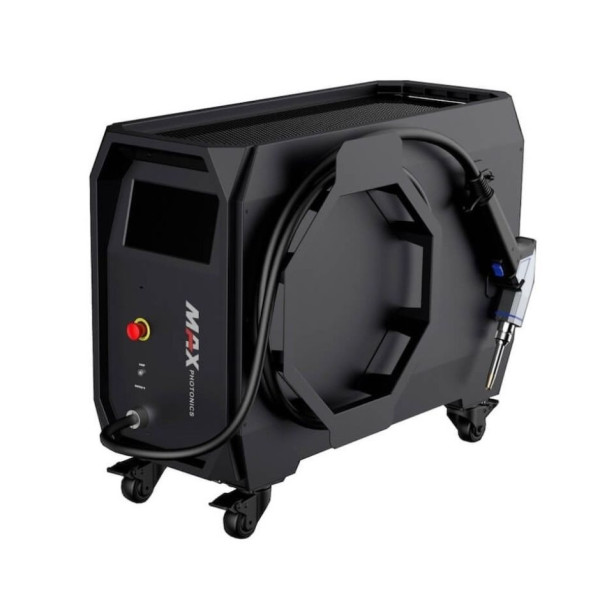

Compact Welder with Separate Wire Feeder
The power source weighs 38 kg excluding the wire feeder. The 16 kg wire feeder features a 4-roll drive for consistent wire feeding. An 8-metre power cable with a 220 V plug is supplied.
Included Equipment and Accessories
- F150 laser gun and wire feeder
- Brass wire guide for 0.8 / 1.0 / 1.2 / 1.6 mm wires
- 5 lens protectors
- 2 nozzles: type A for 0.8 / 1.0 mm wire and type B for 1.2 / 1.6 mm wire
- 3 nozzles for welding without filler metal
- 8 m power cable with a 220 V plug
- 3 pairs of laser safety glasses
- User manual in French
Why Choose This Model?
1200 W with F150 Gun and Wire Feeder
A solution for metal fabrication and maintenance. The intuitive interface and supplied glasses do not replace training or the full protective measures required for laser welding.
- 1200 W at a 100% duty cycle
- 32 predefined parameter sets
- 680 g F150 welding gun
- 38 kg power source excluding the wire feeder
53570
Documentation
Useful documents to help you prepare for installation and use.
No documents are available at the moment.
