Portable ARC Welding Machine EWM Inverter ARC Pico 160 Cel Puls
52105
€851.64
TTC
€906.00
Essential accessories
Option
Inverter ARC welding machine, DC for welding coated or cellulosic electrodes, Diameter 2.5 - 3 mm.
Get register and you will earn 852 points/€42.60
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 852 points that can be converted into a voucher of €42.60.
Availabilities for Pick-up in store :
Professional Pulsed MMA / TIG

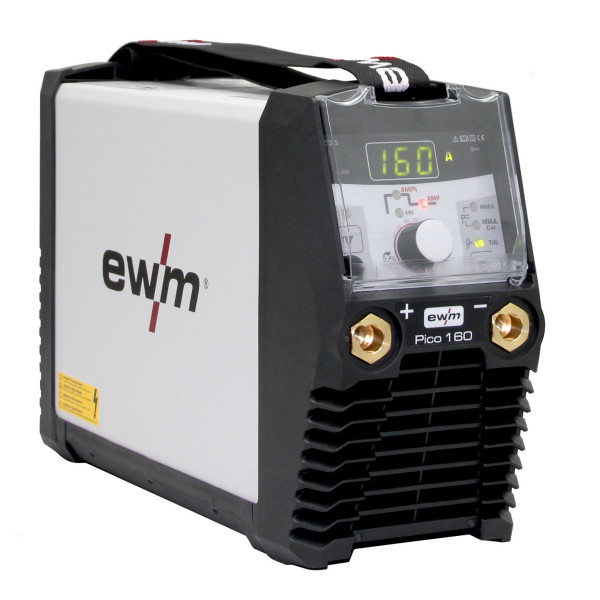

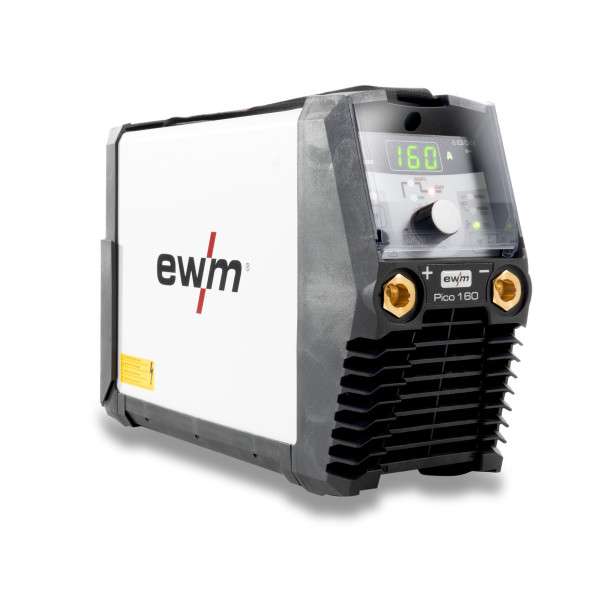

EWM Pico 160 cel puls Welding Machine
The Pico 160 cel puls combines MMA, pulsed MMA and pulsed Lift TIG welding in an inverter power source weighing just 4.9 kg. Powered by a single-phase 230 V supply, it delivers 5 to 150 A in MMA and up to 160 A in TIG.
Pulsed MMA and TIG
The pulse frequency is adjustable from 0.2 to 500 Hz in MMA and from 0.2 to 2,000 Hz in TIG. Lift TIG strikes the arc by touch, without high frequency.
Optimised Electrode Control
The CEL characteristic is designed for vertical-down welding with cellulosic electrodes, and the machine accepts electrodes up to 4 mm in diameter. Adjustable Arcforce and Hotstart, anti-stick and activgauss help to stabilise the arc.
Site-Ready Power Supply
The machine tolerates mains fluctuations from −40% to +15% and can be used with long extension leads or a generator; the recommended generator rating is 9.9 kVA. Integrated protection prevents damage if the machine is accidentally connected to a 400 V supply.
Compact and Robust
The impact-resistant casing, IP23 rating and 3.5 m mains lead with 16 A plug are suited to site work. A remote control and shoulder strap can be added as optional accessories.
Recommended Applications
- Industrial maintenance and repair
- Pipe welding with cellulosic electrodes
- Steel structure assembly
- Mobile on-site work
Not included: Ground clamp, electrode holder clamp.
