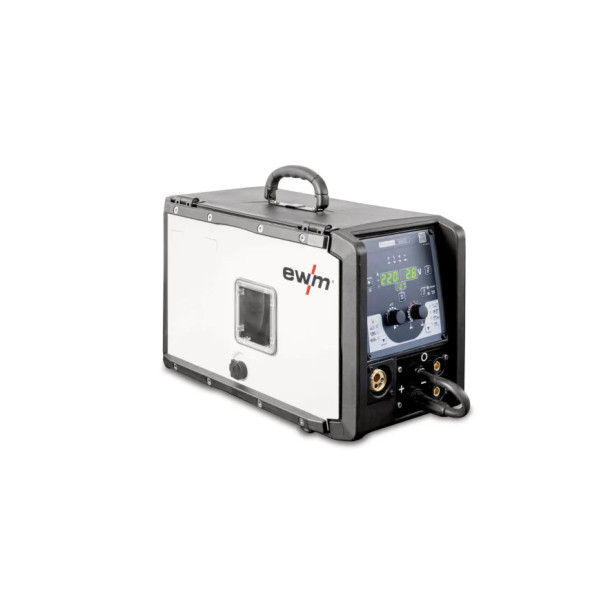

Welding station PICOMIG 220 PULS TKG

Name: Welding station PICOMIG 220 PULS TKG
Brand: EWM
SKU: 090-005680-00502
Price: 3504 EUR
Availability: InStock

€3,504.00 TTC

MIG welder with multi-process, pulsed inverter, from EWM. This MIG station has an easy one-button control and a high-precision and powerful 4-roller wire feeder box for the safe wire feed of all solid and cored wires.

The Picomig 220 puls TKG can be portable or mobile with an optional transport cart. It is characterized by a strong reduction of projections thanks to the pulsed function.

Wire spool diameter up to 200mm /D200.

Free delivery everywhere in France.

Compare Add to Wishlist

Get register and you will earn 3504 points/€175.20 (Each €1.00 spent = 1 point, 1 point = €0.05 discount)
Your cart will total 3504 points that can be converted into a voucher of €175.20.

Fastest Carrier: between Friday, May 3, 2024 and Monday, May 6, 2024 with Colissimo Domicile avec signature

Fastest Carrier: between Friday, May 3, 2024 and Monday, May 6, 2024 with DB Schenker

Description

Welding processes:

MIG/MAG
Pulsed MIG / MAG
TIG
Stick electrode

Function :

Infinitely adjustable arc dynamics.
2 cycle/ 4 cycle mode.
Spot welding.
Interval welding.
Adjustable pre-gas and post-gas times.
Optimal for welding self-shielding cored wires.

Advantages :

No additional purchase of characteristic curves, all characteristic curves for this type of machine are supplied ex works.
Portable or mobile with optional transport trolley.
Wire spool diameter up to 200mm / D200.
High open circuit voltage for excellent ignition properties.
Power saving thanks to high efficiency and standby function.
Simple, tool-free change of welding polarity.
Insulated wire housing.
Protection against splashing water IP23.

Technical characteristics :

Welding current setting range	5 A -220 A
Duty cycle at 40°C	220 A /30% 170 A /60 % 150 A / 100%
No-load voltage	70 V
Mains voltage / Mains tolerance	1 x 230 V (-40% à + 15%)
Mains frequency	50 Hz / 60 Hz
Wire feed speed	1m/min - 18m/min 39.37 ipm - 708.66 ipm
Coil diameter	5 kg / D200
Protection	IP23
Dimensions (LxWxH)	559 mm x 276 mm x 340 mm
Weight	18 kg
