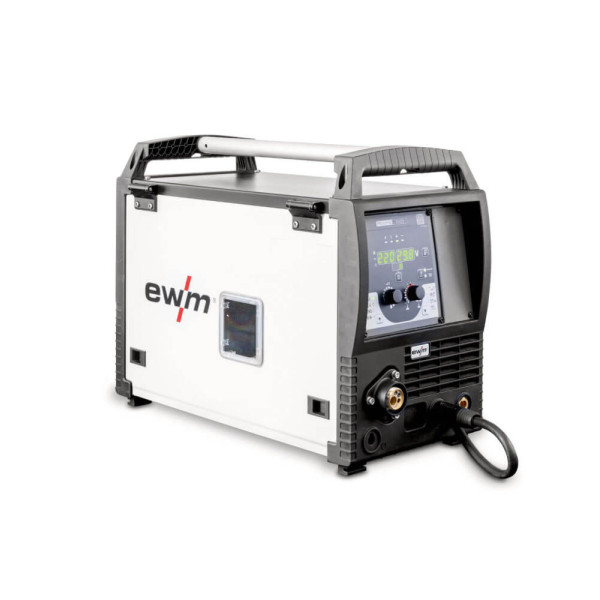

Picomig 225 puls TKG 15KG/D300 MIG welder

Name: Picomig 225 puls TKG 15KG/D300 MIG welder
Brand: EWM
SKU: 090-005682-00502
Price: 4188 EUR
Availability: PreOrder

€4,188.00 TTC

Modular Picomig 225 puls TKG MIG welder suitable for workstations in different environments. Gas or water cooled. This MIG station is characterized by its flexible structure, which can be used in production or mobile, on construction sites or for assembly. Portable or mobile on a Trolly (optional). Reduced size and weight guarantee flexibility and mobility.

Support for 15 kg wire spool (diameter up to 300 mm/D300).

MIG station guaranteed: 3 years

Free delivery in France and Europe in 24h / 48h.

Compare Add to Wishlist

Get register and you will earn 4188 points/€209.40 (Each €1.00 spent = 1 point, 1 point = €0.05 discount)
Your cart will total 4188 points that can be converted into a voucher of €209.40.

Fastest Carrier: between Monday, May 13, 2024 and Tuesday, May 14, 2024 with Colissimo Domicile avec signature

Fastest Carrier: between Monday, May 13, 2024 and Tuesday, May 14, 2024 with DB Schenker

Description

Product Description:

HD SOUDAGE offers you the new range of MIG welding machines from the EWM brand. The PICOMIG 225 puls TKG is a pulsed, multi-process inverter welding power source with easy one-button control and integrated wire feeder box. With strong reduction of spatter thanks to the pulsed function and therefore significantly less retouching.

Welding processes:

MIG/MAG
Pulsed MIG/MAG
TIG
Coated electrode.

Functions:

Infinitely adjustable arc dynamics (self effect).
2 cycle/4 cycle mode.
Spot welding.
Interval welding.
Adjustable pre-gas and post-gas time.
Optimal for welding self-shielding cored wires.

Advantages :

Highly efficient current consumption thanks to integrated PFC technology.
No additional purchase of characteristic curves, all characteristic curves for this type of machine are supplied ex works.
Portable or mobile with transport trolley.
Spool diameter up to 300 mm / D300 (an optional adapter allows a 200 mm / D200 spool to be used as well).
Rugged housing suitable for construction sites.
High open circuit voltage for excellent ignition properties.
Power saving thanks to high efficiency and standby function.
Simple, tool-free change of welding polarity.
Protection against splashing water IP23.

Technical characteristics :

Welding current setting range	5 A -220 A
Duty cycle at 40°C	220 A /30% 170 A /60 % 150 A / 100%
No-load voltage	70 V
Mains voltage / Mains tolerance	1 x 230 V (-40% à + 15%)
Mains frequency	50 Hz / 60 Hz
wire feed speed	1m/min - 18m/min 39.37 ipm - 708.66 ipm
Coil diameter	15 kg / D300
Protection	IP23
Dimensions (LxWxH)	636 mm x 298 mm x 482 mm
Weight	24 kg
