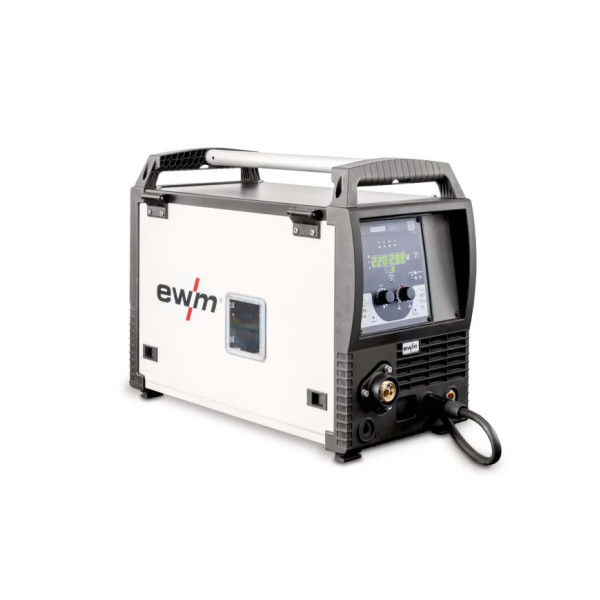

PICOMIG 225 SYNERGIC TKG 15KG/D300 MIG welder

Name: PICOMIG 225 SYNERGIC TKG 15KG/D300 MIG welder
Brand: EWM
SKU: 090-005683-00502
Price: 3228 EUR
Availability: BackOrder

€3,228.00 TTC

Picomig 225 synergic TKG MIG welder with support for 15 kg wire spool (diameter up to 300 mm/D300).

The PICOMIG 225 SYNERGIC TKG adapts to several working doors in different environments. It is characterized by its flexible structure, which can be used in production or mobile, on construction sites or for assembly.

Portable or mobile MIG welding station on a Trolly (optional, contact us). Reduced size and weight guarantee flexibility and mobility.

Warranty : 3 years

Add to Compare Add to Wishlist

Get register and you will earn 3228 points/€161.40 (Each €1.00 spent = 1 point, 1 point = €0.05 discount).
Your cart will total 3228 points that can be converted into a voucher of €161.40.

Buy it now and receive it between on Wednesday, April 8, 2026 and Thursday, April 9, 2026 with DB Schenker

Description

Description of the MIG PICOMIG 225 SYNERGIC TKG 15KG/D300 Welding Machine

The new range of MIG welding machines from the EWM brand. The PICOMIG 225 synergic TKG is a multi-process inverter welding power source, with easy one-button control and integrated wire feeder box.

Welding processes:

MIG/MAG
TIG
Coated electrode.

Functions:

Infinitely adjustable arc dynamics (self effect).
2 cycle/4 cycle mode.
Spot welding.
Interval welding.
Adjustable pre-gas and post-gas time.
Optimal for welding self-shielding cored wires.

Advantages :

Highly efficient current consumption thanks to integrated PFC technology.
No additional purchase of characteristic curves, all characteristic curves for this type of machine are supplied ex works.
Portable or mobile with transport trolley.
Spool diameter up to 300 mm / D300 (an optional adapter allows a 200 mm / D200 spool to be used as well).
Rugged housing suitable for construction sites.
High open circuit voltage for excellent ignition properties.
Power saving thanks to high efficiency and standby function.
Simple, tool-free change of welding polarity.
Protection against splashing water IP23.

Technical characteristics :

Welding current setting range	5 A -220 A
Duty cycle at 40°C	220 A /30% 170 A /60 % 150 A / 100%
No-load voltage	70 V
Mains voltage / Mains tolerance	1 x 230 V (-40% à + 15%)
Mains frequency	50 Hz / 60 Hz
Wire feed speed	1m/min - 18m/min 39.37 ipm - 708.66 ipm
Coil diameter	15 kg / D300
Protection	IP23
Dimensions (LxWxH)	636 mm x 298 mm x 482 mm
Weight	24 kg
