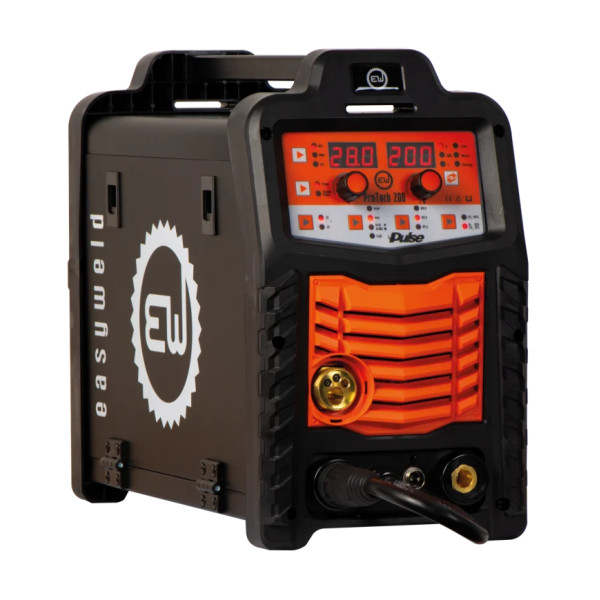

PROTECH 200 double pulse welding machine - EASYWELD
52975
€1,215.00
TTC
€1,350.00
The ProTech 200 MIG welder is a multi-process system with inverter technology, perfect for workshop use.
Get register and you will earn 1215 points/€60.75
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 1215 points that can be converted into a voucher of €60.75.
Availabilities for Pick-up in store :
Double Pulse MIG/MAG, MMA and Lift-TIG
PROTECH 200 Double Pulse Welder with Accessories
The PROTECH 200 is a multiprocess inverter welder adjustable from 40 to 200 A, powered by a single-phase 230 V supply. Its Double Pulse function supports aluminium alloy welding, while MIG/MAG, MMA and Lift-TIG modes provide versatility for workshop tasks.
Double Pulse and Digital Display
The Double Pulse function is suited to welding aluminium alloys. The digital display makes parameters easy to read so you can adjust the welder to your application.
Multiple Processes and Consumables
The welder accepts steel and stainless steel wires from 0.8 to 1 mm, aluminium wires from 1 to 1.2 mm and MMA electrodes from 1.6 to 4 mm. Polarity reversal enables gasless welding with suitable flux-cored wire.
200 A at 60% Duty Cycle
Over a 10-minute cycle at 40 °C, the PROTECH 200 delivers 200 A at 60% and 155 A at 100% duty cycle. It has an IP21S protection rating and insulation class F.
5 kg Spools and Euro Connection
The compartment accommodates 200 mm diameter spools weighing up to 5 kg. The Euro connection accepts the MIG torch. The welder measures 460 × 220 × 375 mm and weighs 15.6 kg.
Included Accessories
- 3 m WeldMig 25 torch
- 3 m earth cable, 25 mm² cross-section
- 2 m gas hose with quick connector
- 0.8–1 mm steel wire roller
- 1–1.2 mm aluminium wire roller
Power supply: single-phase 230 V, 50/60 Hz. Maximum apparent power: 8.2 kVA. Open-circuit voltage: 68 V.
Why Choose This Model?
Double Pulse in a Compact Workshop Design
A versatile solution for steel, stainless steel and aluminium, supplied with a MIG torch and rollers for steel and aluminium wire.
- Adjustable current from 40 to 200 A
- 155 A at 100% duty cycle at 40 °C
- Double Pulse function
- 3 m WeldMig 25 torch included
1EW159X
Data sheet
| Supply current | 220 mono |
|---|---|
| Use | DIY |
| Welding intensity | 180A-220A |
| Matériau à souder | Acier/Inox/Aluminium |
52975
Documentation
Useful documents to help you prepare for installation and use.
No documents are available at the moment.
