STAHLWERK MIG MAG 200 ST PLUS 200A IGBT Welder
53490
€293.99
TTC
€419.99
Step up your performance with the STAHLWERK MIG MAG 200 ST PLUS. A fully synergic welding machine delivering a true 200 amps, equipped with the latest-generation IGBT technology, an intelligent automatic wire feeder, and integrated LED lighting. MIG, MAG, FLUX, Lift-TIG, or MMA ARC: one single machine for all your steel, stainless steel, and demanding industrial applications. Robust, precise, and built to perform.
Add to Compare
Get register and you will earn 294 points/€14.70
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).
Your cart will total 294 points that can be converted into a voucher of €14.70.
Get register and you will earn 294 points/€14.70
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 294 points that can be converted into a voucher of €14.70.
SAV by HD Soudage
Secure payment
Delivery in 24H
Payment in 3 or 4 instalments
Read more

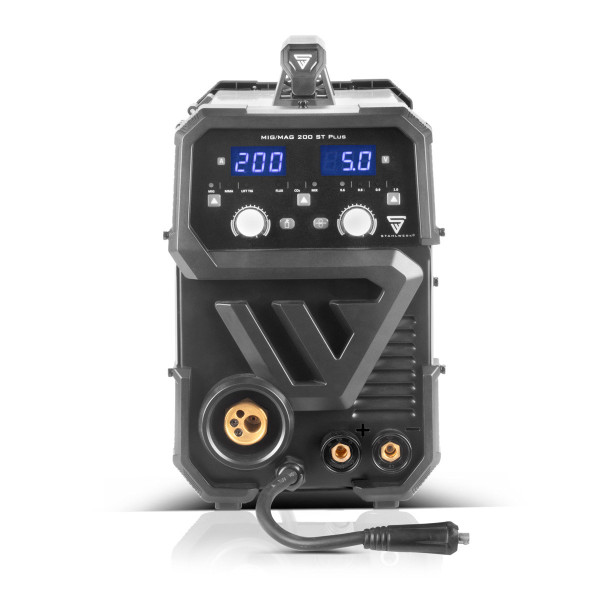

STAHLWERK MIG MAG 200 ST PLUS IGBT Welding Machine
Designed for demanding welders, the STAHLWERK MIG MAG 200 ST PLUS combines power, reliability, and versatility. Thanks to its IGBT technology and synergic wire feed system, it simplifies parameter settings while ensuring consistent weld quality. It is suitable for MIG/MAG welding (with shielding gas) as well as FLUX cored wire welding (gasless), and also supports MMA / ARC and Lift-TIG processes.
Main Features
- 100% Synergic MIG/MAG welder – automatic adjustment for consistent welding results
- Up to 200 A – suitable for steel and stainless steel applications depending on consumables
- IGBT technology – optimized arc stability and efficiency
- FLUX mode – gasless welding possible with flux-cored wire
- Additional processes – MMA / ARC + Lift-TIG
- Intelligent cooling system – integrated thermal protection
- Integrated LED lighting – improved visibility in the wire feed area
Technology & Ease of Use
The synergic mode allows quick and accurate welding parameter selection. The machine also includes practical adjustment features to simplify setup (especially when changing wire spools or consumables) and to improve weld pool stability depending on the selected process (MIG/MAG, FLUX, MMA, Lift-TIG).

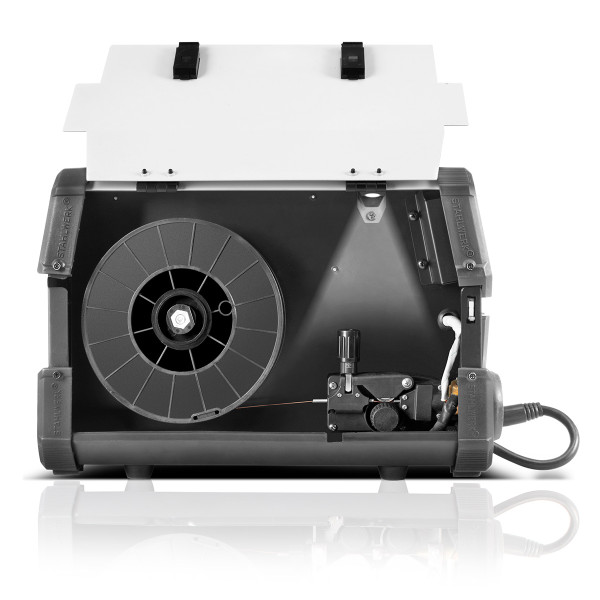

Spool & Consumable Compatibility
The machine supports spools and consumables compatible with MIG/MAG and FLUX processes. Usable amperage depends on the wire diameter (see technical data). For gas connection, ensure compatibility of your regulator and installation according to your country’s standards.

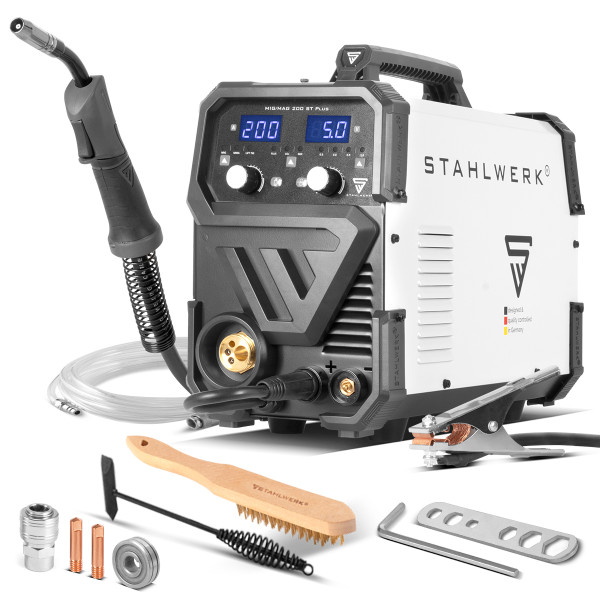

Included: Complete Package
- 1 x STAHLWERK MIG MAG 200 ST PLUS welding machine
- 1 x Professional AK-15 MIG welding torch / 3 m cable assembly with European central connector
- 1 x 5 m gas connection hose with quick connector
- 2 x Wire feed rollers 0.8/1.0 mm (one pre-installed)
- 1 x Gas regulator quick connector including O-ring
- 1 x Hex key
- 2 x 0.8 mm contact tips (one pre-installed)
- 1 x 1.0 mm contact tip
- 1 x 3 m ground cable
- 1 x Chipping hammer
- 1 x Wire brush
- 1 x Assembly wrench
- 1 x Protective cover
Technical Specifications
- MIG/MAG current: 20 – 200 A
- FLUX current: 20 – 200 A
- MMA / Lift-TIG current: 20 – 200 A
- Duty cycle: 15% at 200 A / 60% at 100 A / 100% at 77 A
- Voltage: 1 x 230 V AC (±15%)
- Open circuit voltage: 62 V
- Protection class: IP21S
- Weight: 10 kg

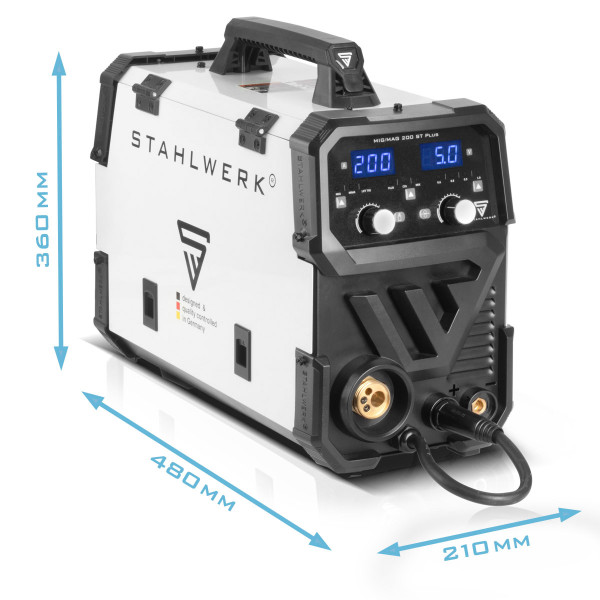

- Dimensions: 480 x 210 x 360 mm
- Standards: IEC 60974-1 ; EN 60974-10 (Class A)
- Certification: SGS Standards Technical Services Co., Ltd
