STAHLWERK MIG MAG 200 ST Digital Welding Machine – Full Equipment Pack

Detailed Description

The STAHLWERK MIG MAG 200 ST Digital is a robust and intelligent welding system designed to meet the demands of professionals. Powered by advanced IGBT inverter technology, it ensures high efficiency, lower energy consumption, and a highly stable arc.

Offering up to 200 A output in MIG/MAG and MMA modes, this machine supports gas-shielded and FLUX-core welding, allowing maximum flexibility for indoor and outdoor tasks. The synergic wire feeder auto-adjusts the wire speed based on selected amperage for consistent welding performance.

The Spot function is perfect for automotive applications, enabling uniform tacks with minimal heat input—reducing deformation on thin sheet metals. The 2T/4T modes give you enhanced control over the welding process.

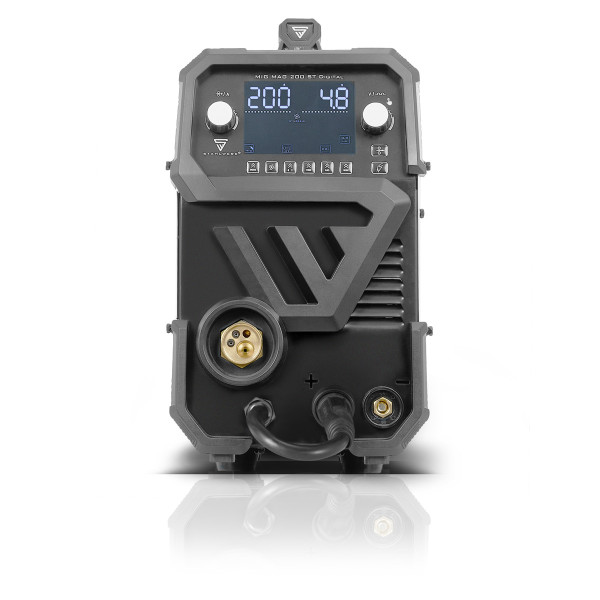

Equipped with a clear digital display, intuitive menu, and integrated LED light for the wire guide area, every operation from setup to spool change is streamlined—even in poor lighting. Compact at 10.9 kg, it’s easy to carry wherever needed.

Main Features:

• MIG/MAG DC welding with inert or active gases
• MMA/ARC electrode welding

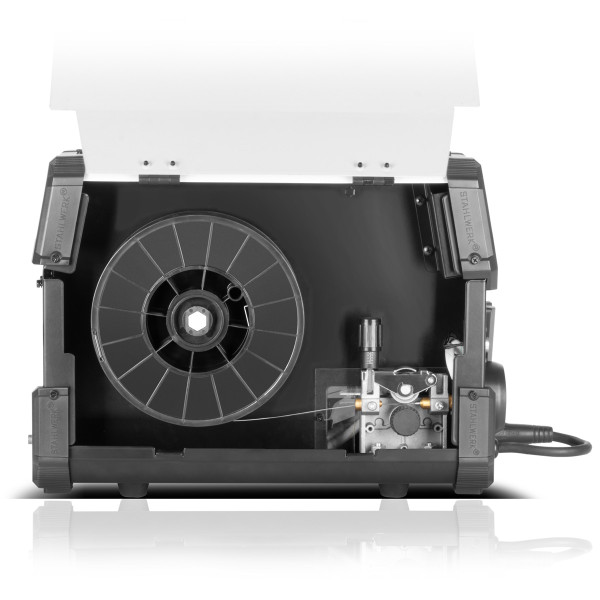

• Synergic wire feed with interchangeable rollers (0.6–1.0 mm)
• FLUX-capable – weld without gas
• Spot welding – clean and precise tack welds
• Modern IGBT technology – power and efficiency
• Overheat protection with smart cooling

Technical Specifications:

• Output range: MIG 45–200 A | MMA 20–180 A
• Power supply: 230 V AC single-phase, 50/60 Hz
• Protection class: IP21S

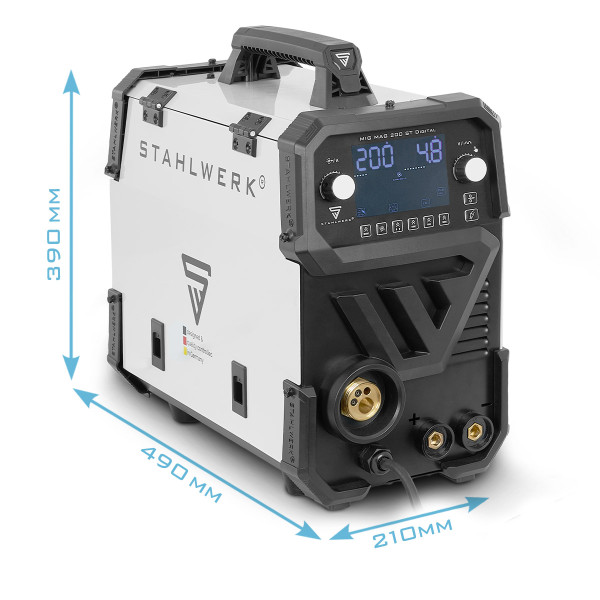

• Dimensions: 490 x 210 x 390 mm
• Weight: 10.9 kg
• Certifications: TÜV Rheinland – EN 60974-1 / EN 60974-10

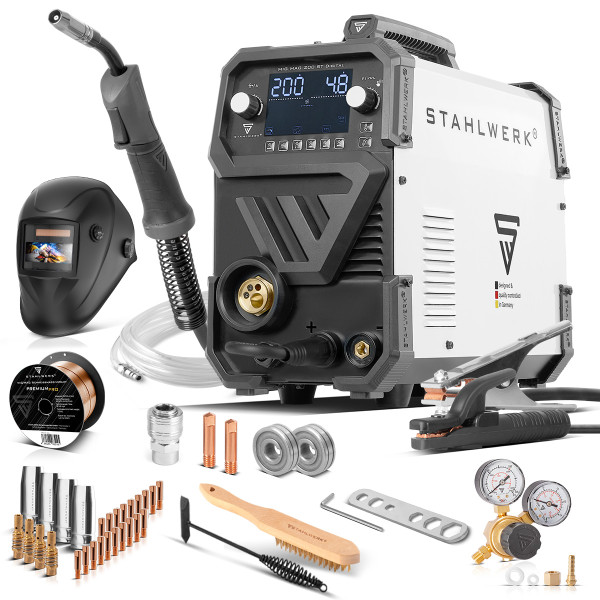

Package Includes:

• MIG MAG 200 ST Digital
• AK 15 Hose package 3 m
• 1x 0.8 mm contact tip (pre-assembled)
• 1x 0.8 mm contact tip
• 1x 1.0 mm contact tip
• 1x (1.0/0.8 type V) wire guide roller (pre-assembled)
• 1x (0.8/0.6 type V) wire guide roller
• 1x (1.0/0.8 type E) wire guide roller
• 1 x assembly wrench
• 1x 2.5 mm Allen key
• 1 x electrode holder 3 m
• 1 x earth clamp 3 m
• 1 x gas connection hose 5 m
• 1 x quick coupling for gas pressure reducer
• 1 x wire brush
• 1 x slag hammer
• 1 x protective cover
• 1 x MIG MAG 15AK wear parts set 28 pieces
• 1 x welding wire MIG/MAG steel Ø 0.8 mm ER70S-6 SG2 wire reel
• 1 x Professional welding helmet
• 1 x pressure reducer
