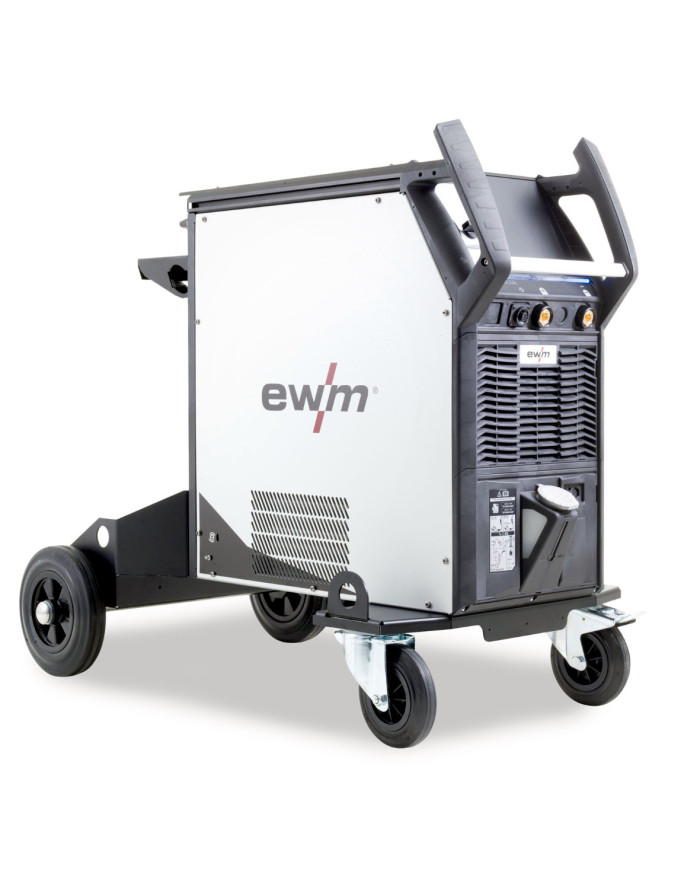

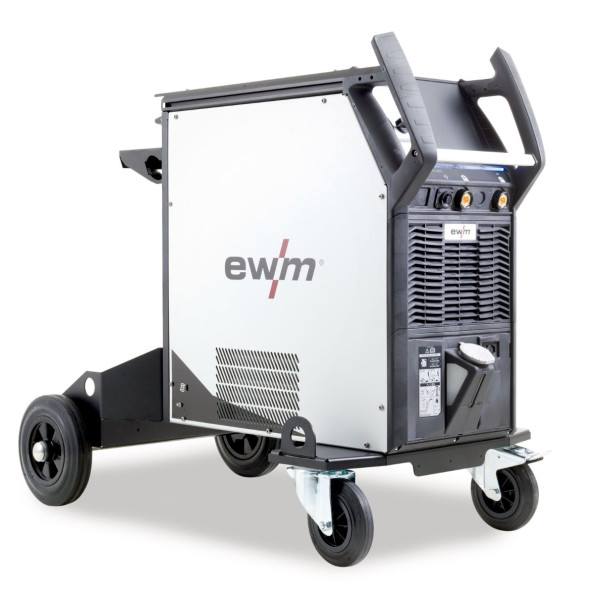

Pulsed MIG/MAG Welding Machine - Phoenix XQ 400 puls DW

Pulsed MIG/MAG Welding Machine - Phoenix XQ 400 puls DW

Name: Pulsed MIG/MAG Welding Machine - Phoenix XQ 400 puls DW
Brand: EWM
SKU: 090-005644-00001
Price: 8160.4 EUR
Availability: BackOrder

€8,160.40 TTC
€8,870.00

Essential accessories

Option

		Drive XQ HP – MIG/MAG Wire Feeder for XQ Welding Power Sources €3,116.04
		ON PS F.06 1D.01 – 360° rotating wire feeder for extended working range €213.00
		Water-Cooled 14-Pin Cable Assembly MIG W 14POL 70mm² 400A 10m €1,182.00
		blueCool -10 5 l – Cooling Liquid for EWM Water-Cooled Welding Machines €39.00
		Universal MIG Water-Cooled Torch 500 A EWM - L 4 m €199.99
		Ground Clamp Cable with Screw Clamp - WK70mm² Ø 13 mm 450A/60% 4m/Z €182.00

Improve weld quality, arc stability and productivity with the Phoenix XQ 400 puls DW.

Get register and you will earn 8160 points/€408.00 (Each €1.00 spent = 1 point, 1 point = €0.05 discount).
Your cart will total 8160 points that can be converted into a voucher of €408.00.

Availabilities for Pick-up in store :

Select your Pick-up store

Description

Pulsed MIG/MAG with separate wire feeder

EWM Phoenix XQ 400 puls DW R1 5m Welder

The Phoenix XQ 400 puls DW offers a current range of 5 to 400 A for standard and pulsed MIG/MAG, MMA, TIG and gouging. At 40 °C, it delivers 400 A at an 80% duty cycle and 370 A at 100% for sustained industrial work.

Synergic Control and Included Characteristic Curves

Single-knob control simplifies adjustment, with all characteristic curves suited to the power source supplied as standard. Non-Synergic mode allows manual adjustment, with customisable programmes for each JOB and start and end crater control.

Standard and Pulsed EWM Processes

The welder includes rootArc® XQ, rootArc® puls XQ, forceArc® XQ, forceArc® puls XQ, Impuls, superPuls and Positionweld for aluminium. Synergic curves cover steel, CrNi stainless steel, aluminium and flux-cored wires.

Separate Wire Feeder and Consistent Feeding

The Drive XQ / Drive XQ IC 200 wire feeder uses an eFeed 4-roll drive for solid and flux-cored wires, from 0.5 to 25 m/min. The power source maintains arc stability when working with long cable assemblies.

Integrated Liquid Cooling

The cooling system provides 1,500 W at 1 l/min, with a 3.5-bar pump and an 8-litre tank. The flexFit housing makes it easy to add accessories, and the LED bar indicates operating status.

Key Specifications

Factory-set power supply: three-phase 380–400 V, 50/60 Hz
Mains voltage tolerance: −25% to +20%
Recommended generator rating: 23.2 kVA

Efficiency: 90%, with standby function
Dimensions: 1,152 × 686 × 976 mm
Weight: 125.5 kg — IP23 protection

Supports connection to a remote control, a torch with integrated controls and PC300 XQ software via a PC interface. Optional ewm Xnet connectivity is available through an integrated or external gateway.

Why Choose This Model?

Pulsed MIG/MAG for Industrial Production

A multiprocess solution with a separate wire feeder, synergic settings and liquid cooling for fabrication workshops and structural metalwork.

Current range: 5 to 400 A
370 A at 100% duty cycle at 40 °C
Suitable characteristic curves included as standard
Integrated cooling with an 8-litre tank

Product Details

BrandEWM

Reference090-005644-00001
