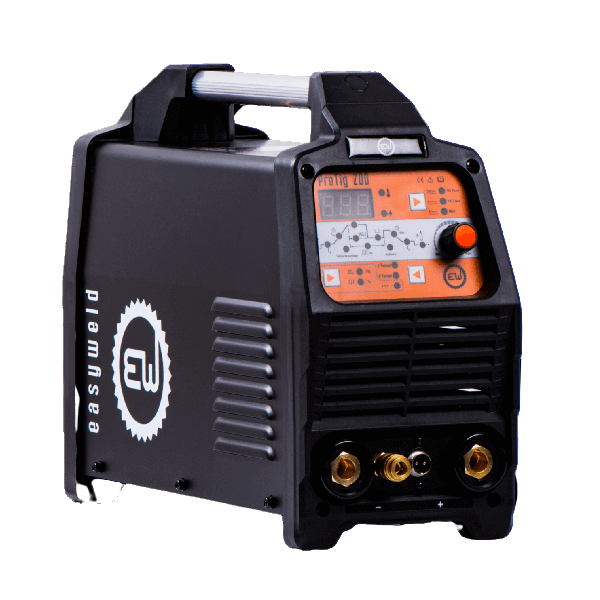

TIG INVERTER PROTIG 200 welding station + WT 17 4m torch
52988
€853.60
TTC
€970.00
Essential accessories
The ProTig 200 TIG welder offers an excellent opportunity to practice your knowledge and skills. Whether you are a craftsman, a handyman or a maintenance technician, this machine is the ideal tool for you.
Get register and you will earn 854 points/€42.70
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 854 points that can be converted into a voucher of €42.70.
Availabilities for Pick-up in store :
Portable TIG inverter and MMA
PROTIG 200 Welder with 4 m WT 17 Torch
The PROTIG 200 offers a current range of 10 to 200 A with a digital parameter display. Powered by a single-phase 230 V supply, this 7.3 kg welder comes in a carrying case with a 4 m WeldTig 17 torch and cables.
Clear and Precise Settings
The digital display shows the selected parameters. The adjustment range of 10 to 200 A allows you to match the current to your welding requirements.
Duty Cycle Performance
Over a 10-minute cycle at 40 °C, the welder delivers 200 A at a 30% duty cycle, 142 A at 60% and 110 A at 100%.
TIG and MMA Welding
The WeldTig 17 torch supports TIG welding work. For MMA welding, the unit accepts electrodes from 1.6 to 3.2 mm and comes with a 3 m electrode holder cable.
Easy Transport and Storage
Measuring 410 × 160 × 310 mm, the PROTIG 200 can be transported in its carrying case. It has an IP21S protection rating and insulation class F.
Included Accessories
- 4 m WeldTig 17 torch
- 3 m earth cable
- 3 m electrode holder cable
- 2 m gas hose
1EW012X
Data sheet
| Supply current | 220 mono |
|---|---|
| Use | DIY |
| Welding intensity | 200A-230A DC |
| Cooling type | Air |
