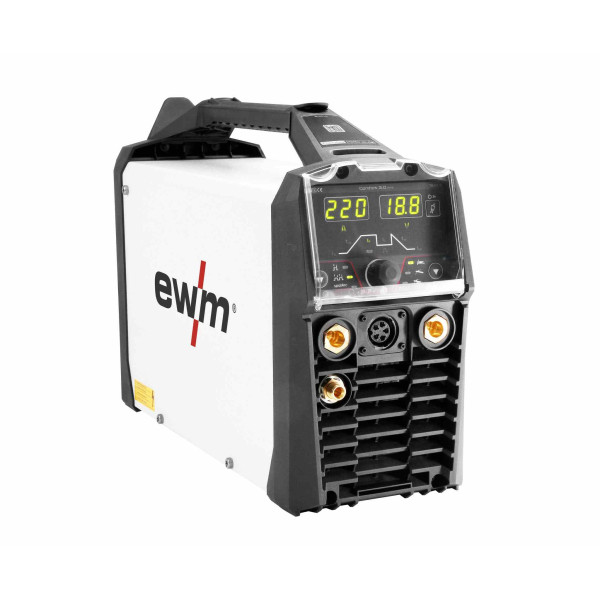

TIG welding machine Picotig 220 PULS DC 5P

TIG welding machine Picotig 220 PULS DC 5P

Name: TIG welding machine Picotig 220 PULS DC 5P
Brand: EWM
SKU: 090-002068-00502
Price: 2152.8 EUR
Availability: InStock

€2,152.80 TTC
€2,340.00

Essential accessories

Option

		Ground Clamp 35 mm² 290A/60% - L 4m €58.80
		Argon / CO2 / 38l/mn - 3S type shielded pressure Pressure regulators €138.00
		Flexible TIG Torch 150A 8m with 2 Pole Plug - Leather EWM €216.00
		Gas hose for EWM TIG - MIG welding machines - Length 3 m €27.00

Dive into welding excellence with the EWM prestigious brand's TIG DC inverter welding machine. Portability, integrated PFC technology for increased efficiency, and a complete range of welding modes, including DC TIG, pulsed TIG, MMA, and much more.

Get register and you will earn 2153 points/€107.65 (Each €1.00 spent = 1 point, 1 point = €0.05 discount).
Your cart will total 2153 points that can be converted into a voucher of €107.65.

Availabilities for Pick-up in store :

Select your Pick-up store

Description

Portable pulsed DC TIG and MMA

EWM Picotig 220 PULS DC 5P Welder

The Picotig 220 PULS DC 5P combines DC TIG, pulsed TIG and MMA welding in a portable inverter welder. Powered by a single-phase 220 V, 16 A supply, it delivers 220 A at a 40% duty cycle and 160 A at 100%.

Pulsed TIG and MMA Control

DC TIG and pulsed TIG modes allow you to adapt the welding process to your work. In MMA mode, adjustable Hotstart and Arcforce, combined with the antistick function, make arc ignition easier and reduce electrode sticking.

Comfort 3.0 mini Control Panel

The 7-segment displays make essential parameters quick to read and select. X Technology connectivity ensures compatibility with Retox XQ torches.

Power Supply Flexibility for Site Work

PFC optimises energy efficiency, while the standby function reduces idle power consumption. The welder tolerates voltage fluctuations and operates on a generator, even with long power supply cables.

Robust and Easy to Transport

The housing with its impact-resistant plastic cover protects the equipment, complemented by overvoltage protection. Built-in storage in the handle keeps consumables within easy reach.

Product Details

BrandEWM

Reference090-002068-00502

In stock8 Items

Data sheet

Supply current	220 mono
Use	Professional
Welding intensity	200A-230A DC
Cooling type	Air

Avis

Documentation

Useful documents to help you prepare for installation and use.

No documents are available at the moment.
