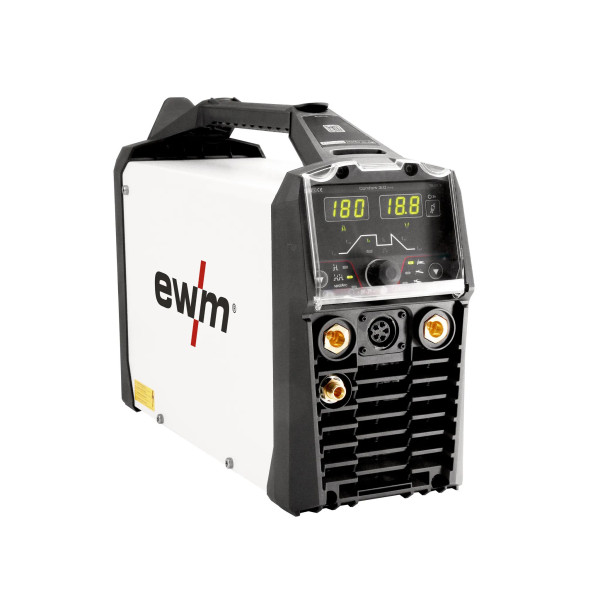

TIG Welding Machine DC Picotig 180 Pulse DC 5P

Detailed description

The Picotig 180 puls DC 5P is a compact powerhouse weighing just 10 kg. This gas-cooled TIG DC inverter welder features a 5-pin connection with EWM’s X technology, allowing use of advanced Retox XQ torches with built-in display and remote control.

Thanks to its multi-voltage compatibility (110–120 V / 230 V) and high tolerance to voltage fluctuations, it performs seamlessly worldwide, even with long power lines or on generator mode. Integrated PFC technology ensures energy-efficient operation with optimal arc stability.

Advanced welding capabilities

• TIG DC and Pulsed TIG with adjustable pulsing
• 2T / 4T operating modes
• Spotmatic and spotArc® functions
• Covered electrode welding, pulsed and CEL
• Adjustable Hotstart and Arcforce
• Integrated anti-stick function

Smart control interface

The Comfort 3.0 mini-control panel with dual 7-segment displays allows fast and intuitive parameter selection. A protective flap shields the interface from water, dust, and impacts.

Durable and field-ready

• Temperature-controlled fan reduces noise and dust intake
• IP23 rated for splash protection
• Handle-integrated consumable compartment for torch parts
• Integrated cable holder and 3.5 m power lead with 16 A safety plug
• Surge protection up to 400 V prevents damage from misconnection

Included components

• Picotig 180 puls DC 5P TIG inverter with PFC module
• Earth clamp with 16 mm² cable – 170 A / 60 %
• 2 m gas hose
• Pressure regulator with gauge – 15 l
• 4 m TIG Retox XQ multifunction torch

Technical specifications

• Current range: 5 A – 180 A
• Duty cycle @ 230 V: 180 A / 40 %, 170 A / 60 %, 150 A / 100 %
• @ 110–120 V: 150 A / 40 %, 130 A / 60 %, 110 A / 100 %
• Open-circuit voltage: 97 V
• Dimensions: 454 x 165 x 321 mm
• Weight: 10 kg
• EMC class: A / Standards: IEC 60974-1, -3, -10 CL.A
