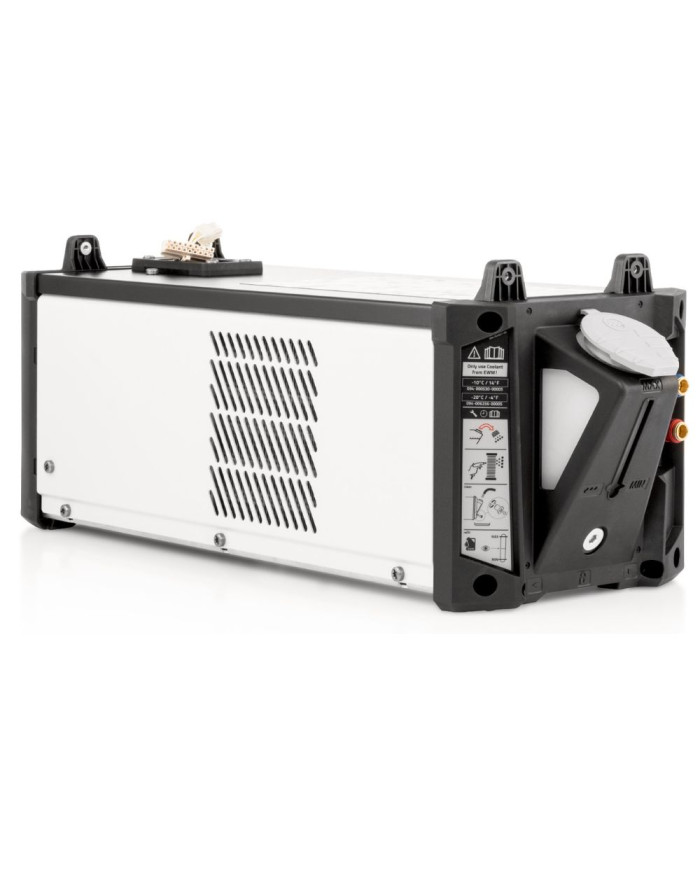

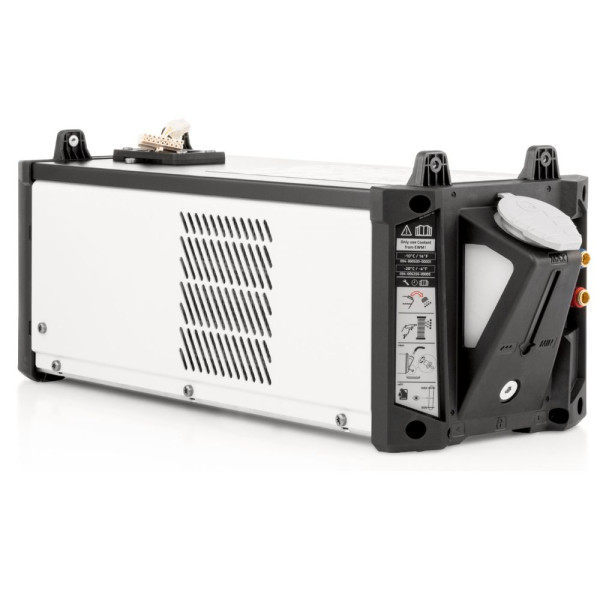

Cool XQ 40 MV – Cooling unit for welding torches
53635
€1,442.56
TTC
€1,568.00
The Cool XQ 40 MV protects your welding torch from overheating through integrated flow control, coolant temperature monitoring and a maximum cooling capacity of 1100 W.
Get register and you will earn 1443 points/€72.15
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 1443 points that can be converted into a voucher of €72.15.
Availabilities for Pick-up in store :
Multivoltage Liquid Cooling
Cool XQ 40 MV Cooling Unit
The Cool XQ 40 MV cools torches on compatible welding systems using a single-phase 120 or 230 V supply. It delivers a cooling capacity of 790 W at 1 l/min and a maximum of 1,100 W, with coolant flow and temperature monitoring.
Torch Protection
The standard flow monitor checks coolant circulation. Temperature monitoring provides additional protection against insufficient cooling or excessively hot coolant.
On-Demand Fan Operation
The fan adjusts its operation to cooling requirements, reducing noise and limiting dirt build-up inside the unit.
Easy Filling
The 2.3 l tank features an easily accessible filling opening and MIN / MAX level markings. An external water filter is available as an option.
Compact Design
The unit measures 588 × 224 × 200 mm and weighs 12.5 kg. It provides IP23 protection when installed on compatible equipment.
Key Specifications
- Power supply: 1 × 120 V or 1 × 230 V
- Mains frequency: 50 / 60 Hz
- Pump pressure: 3.5 bar
- EMC class: A
53635
Documentation
Useful documents to help you prepare for installation and use.
No documents are available at the moment.
