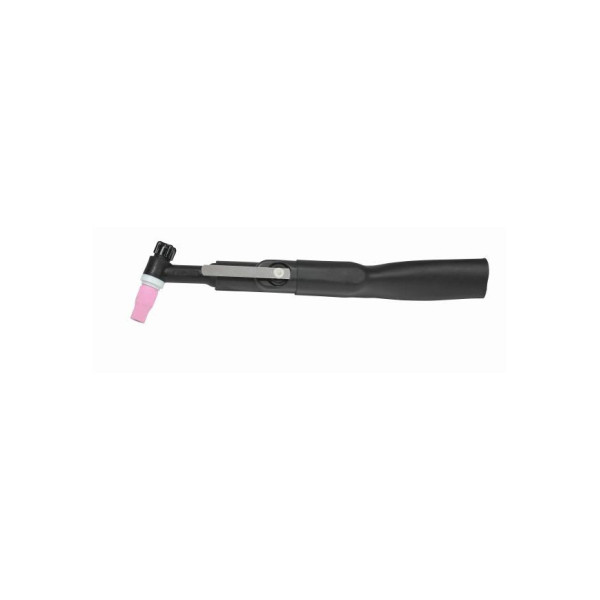

TIG Torch Water-Cooled 250A 8M
53246
€223.00
TTC
Bring precision and mobility to your TIG welding setup with this 250 A water-cooled WT20 torch. Its 8-metre cable assembly provides generous working range across the workshop, while the 5-pin EWM plug supports connection to a compatible installation.
Get register and you will earn 223 points/€11.15
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 223 points that can be converted into a voucher of €11.15.
Availabilities for Pick-up in store :
Water-cooled TIG torch — EWM 5-pin control connector
WT20 250 A TIG Torch, 8 m — STARWELDING TORCHES
The WT20 torch combines water cooling with a compact, rigid body for professional TIG welding. It is rated at 250 A DC and 180 A AC at a 60% duty cycle, with an 8 m hose assembly for working around large workpieces.
Water Cooling
Water cooling helps manage heat at the torch during sustained welding cycles. This configuration requires a TIG installation with a compatible cooling circuit.
Compact Body and 8 m Hose Assembly
The rigid WT20 body allows precise torch guidance. The 8 m hose assembly provides freedom of movement around structures and hard-to-reach areas without constantly moving the power source.
Connections for EWM Setups
The torch features an EWM 5-pin control connector, a quarter-turn power connector and a 1/4 gas connection. Check that these connections match your equipment before ordering.
Protected Hose Assembly
The leather sleeve protects the area near the torch against spatter, heat and abrasion. The fabric cover keeps the hose assembly together and helps protect it when moving around the workspace.
Recommended Applications
- Fabrication and assembly of metal structures
- Workshop maintenance and repairs
- Pipework and sheet metal fabrication
- Replacement of a water-cooled TIG torch
Before ordering, check the compatibility of the control connector, power and gas connections, and cooling circuit.
Why Choose This Model?
250 A DC with an 8 m Hose Assembly
A rigid-body torch for a compatible water-cooled TIG installation. Reference: WT2025R EWM.
- 250 A DC / 180 A AC at 60% duty cycle
- Water cooling
- EWM 5-pin control connector
- Leather sleeve and fabric cover
53246
Documentation
Useful documents to help you prepare for installation and use.
No documents are available at the moment.
