STAHLWERK Welding Table – DIY Kit with 12 mm S355 Steel Top, 1.5 t Load
53503
€381.30
TTC
€410.00
Robust, precise, ultra-stable: the STAHLWERK welding table kit features a 12 mm S355 steel top, adjustable legs and 1.5-ton load capacity. Perfect for pro welders and demanding makers.
Get register and you will earn 381 points/€19.05
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 381 points that can be converted into a voucher of €19.05.
Availabilities for Pick-up in store :

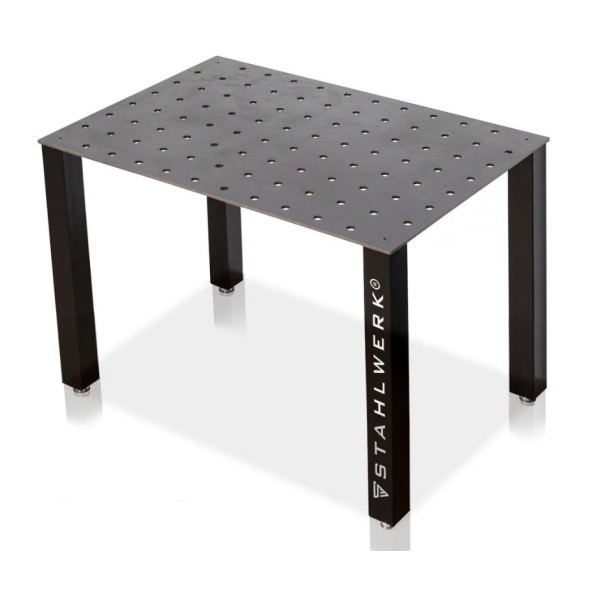

Self-assembly table with perforated S355 steel worktop
STAHLWERK DIY Welding Table — 120 × 80 cm Worktop, 12 mm Thick
This STAHLWERK welding table combines a 12 mm thick S355 steel worktop with a bolt-together frame. Its 120 × 80 cm surface provides ample space for preparing, positioning and clamping workpieces during welding and metal fabrication tasks. The stated load capacity is up to 1500 kg, provided the manufacturer's assembly and operating instructions are followed.

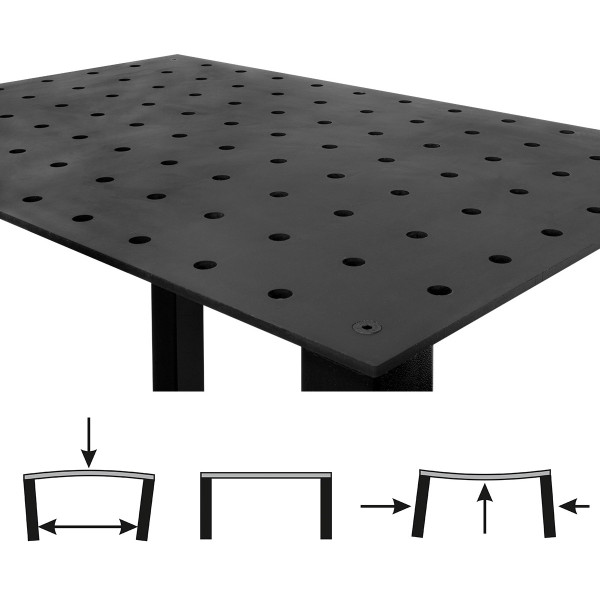

Heavy-duty S355 steel worktop
The 12 mm thick worktop weighs 80 kg, with a total table weight of 100 kg. It provides a rigid working base for preparation, assembly and welding operations in the workshop.
22 mm holes with 100 mm spacing
The perforated grid allows compatible clamping accessories to be positioned in the 22 mm holes. The 100 mm spacing makes it easier to arrange fixing points according to the shape and dimensions of the workpieces.
Bolt-together assembly
The table is supplied as a kit with four M12 fixing bolts and a hex key. The worktop is secured to the legs without requiring any welding for assembly. Due to its weight, suitable handling equipment should be used during installation.
Stainless steel levelling feet
The four structural legs feature a powder-coated finish and are fitted with four stainless steel levelling feet. Their adjustable design helps compensate for uneven workshop floors and ensures the table can be properly levelled.
Technical specifications
- Brand: STAHLWERK

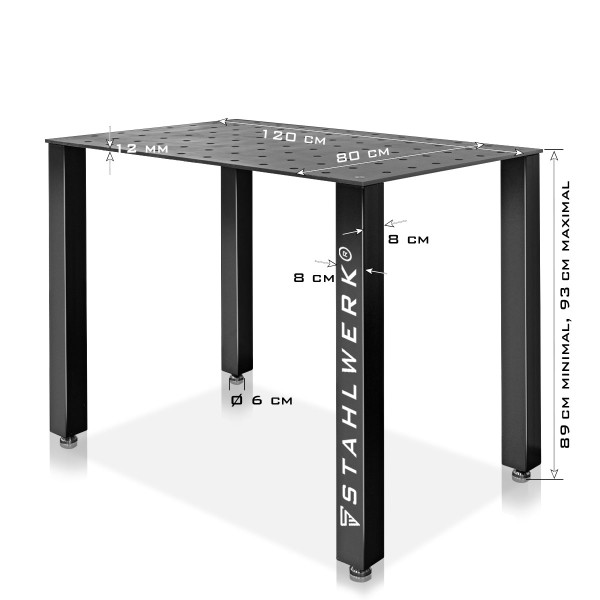

- Work surface: 120 × 80 cm
- Worktop material: S355 steel
- Worktop thickness: 12 mm
- Holes: Ø 22 mm, spaced 100 mm apart
- Stated load capacity: 1500 kg
- Total weight: 100 kg
- Worktop weight: 80 kg
- Stated tensile strength: 520 N/mm²
- Stated yield strength: 355 N/mm²

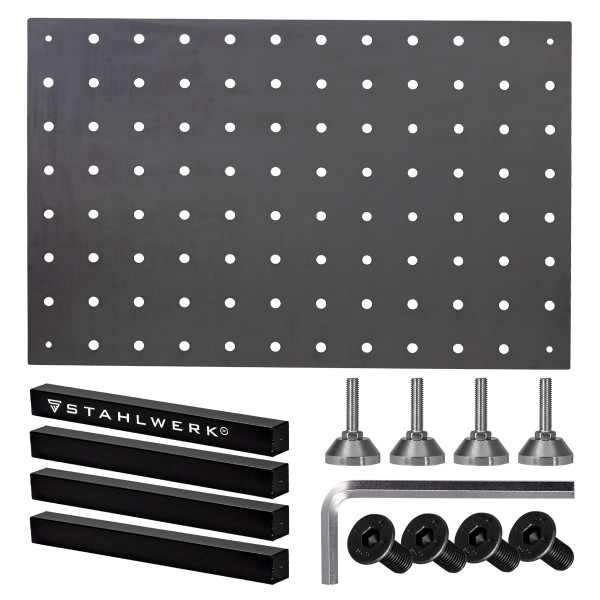

Scope of delivery
- 1 × 12 mm S355 steel worktop
- 4 × powder-coated structural legs
- 4 × stainless steel levelling feet
- 4 × M12 fixing bolts
- 1 × hex key
Why choose this model?
A robust base for clamping workpieces
A thick, perforated worktop designed to organise and secure assemblies, combined with a bolt-together structure and levelling feet for adapting the installation to the workshop floor.
- 12 mm S355 steel worktop
- 120 × 80 cm work surface
- Ø 22 mm holes with 100 mm spacing
- Stated load capacity up to 1500 kg
