WallPro Double fixed filtration unit
52569
€10,709.86
TTC
WallPro Double is a high-tech stationary fume extractor, designed for professional welders. It is suitable for steel and stainless steel welding activities.
Get register and you will earn 10710 points/€535.50
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 10710 points that can be converted into a voucher of €535.50.
Availabilities for Pick-up in store :
Fixed twin-arm extraction with a self-cleaning filter

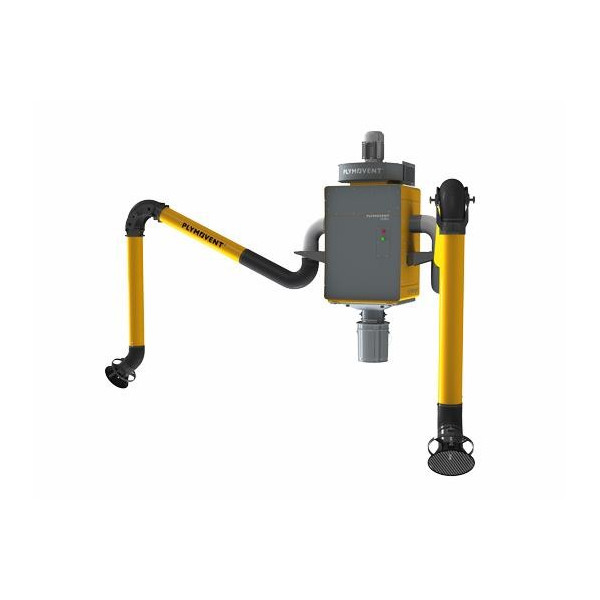

PLYMOVENT WallPro Double Fume Extractor
The WallPro Double is a fume extractor with extraction arms designed for welding steel and stainless steel. It combines two extraction arms, a 2.2 kW PVA-3000 fan and a 20 m² self-cleaning filter cartridge.
Two Arms for Source Capture
The 160 mm diameter arms are available in 3- or 4-metre lengths, depending on the configuration. The stated extraction capacity in Power mode is 2 × 1,000 m³/h.
Automatic RamAir Cleaning
The system uses pressure-controlled cleaning with RamAir pulse amplifiers. It helps limit cartridge clogging and extend its service life.
Maintenance with Reduced Dust Emissions
A valve isolates the filter from the dust collection bin during maintenance. The bag-in/bag-out system contains the cartridge during replacement to limit dust dispersion.
Controls and Extraction Levels
The control box simplifies system operation. Three extraction levels are specified: Standard, Power and Power Plus. The installation operates on a three-phase 400 V, 50 Hz supply.
Key Specifications
- PVA-3000 fan: 2.2 kW
- Filtration surface area: 20 m²
- Stated welding fume classification: W3
- Two Ø 160 mm arms, 3 or 4 m long
- Noise level without silencer: 76 dB(A)
- Noise level with silencer: 71 dB(A)
Available options and accessories: dust collection bin extension, CART-O/PTFE/20 cartridge, LL-5.5/24-160 accessory, WCS-WP welding cable detector and SAS-250 straight silencer.
Explore our other welding fume extraction solutions or contact our technical advisers to select your configuration.
Why Choose This Model?
Two Capture Points and Easier Maintenance
A fixed installation for professional welding, combining automatic filter cleaning with containment features for maintenance. Capture efficiency depends on arm positioning and system upkeep.
- Two extraction arms
- Stated airflow in Power mode: 2 × 1,000 m³/h
- 20 m² cartridge with RamAir cleaning
- Bag-in/bag-out filter replacement system
