RollTect Retractable Screen: Safety & Mobility

Optimizing Safety and Mobility with the RollTect Retractable Welding Screen

Mobility and Flexibility for a Safe Working Environment

The evolution of industrial environments requires solutions that enhance safety while adapting to mobility constraints. On the shop floor, the need to frequently move protective barriers around welding stations has become essential—whether to keep pace with demanding operations or to support a dynamic workshop layout. The RollTect retractable screen meets this requirement precisely thanks to its ingenious system mounted on robust caster wheels. This mobile base allows the protective barrier to be positioned exactly where it is needed, without excessive effort or complex handling.

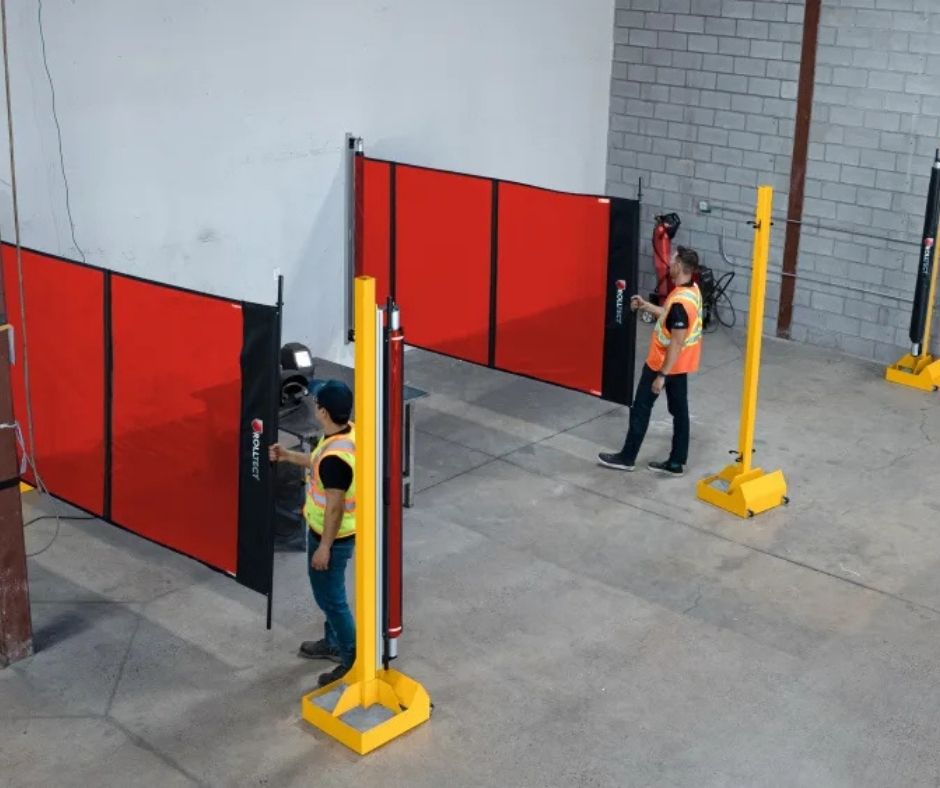

Moving a RollTect screen is straightforward: the operator simply pulls the curtain from its roller base to the opposite anchoring points within the cell. This mechanism ensures rapid installation, significantly reducing downtime when transitioning from one area to another or when workstations frequently change according to production schedules. The instant adjustment of the screens helps protect effectively against incandescent spatter while maintaining a smooth and organized working environment.

The presence of wheeled bases also eliminates the need for traditional stationary guards, which are often heavy and difficult to reposition. Thanks to this mobility, operators can secure each active area in line with workflow changes, enabling spontaneous adaptation without compromising safety or slowing down productivity.

Adaptive Design for Maximum Protection

Beyond its outstanding mobility, the RollTect stands out for its self-supporting structure and controlled weight. This design ensures not only easy handling but also excellent stability on all types of industrial flooring. The entire system—including posts—forms a reliable barrier against various welding-related hazards: flying sparks, intense heat, ultraviolet radiation, and metal spatter are all effectively contained behind a curtain designed to withstand repeated exposure.

The material used plays a key role: depending on the specific workstation requirements (desired visibility or confidentiality), operators can choose between semi-transparent PVC (14 mil) or opaque PVC (18 oz), both certified flame-retardant (CFM) to ensure maximum resistance to accidental flames. The standard height reaches approximately 1.68 meters, while the width can extend up to about 6 meters. Each curtain is securely fastened using the supplied J-hooks; up to four panels can converge on a single central post if required.

This modular configuration allows not only the rapid creation of protected areas but also their immediate reconfiguration. Full access can be opened for oversized equipment (overhead cranes or forklifts) whenever needed, then securely closed again after the operation. Downtime caused by moving heavy fixed barriers is eliminated, replaced by constant flexibility that perfectly matches the pace of modern industrial operations.

The system therefore provides an effective shield against all hazards inherent to MIG, TIG, or stick welding, while simultaneously ensuring logistical fluidity and enhanced safety across every strategic zone.

Convenience and Efficiency of RollTect Retractable Welding Screens

Compact Functionality and Simplified Operation

Space constraints are often a major challenge in workshops where multiple heavy machines and production lines coexist. The RollTect retractable curtain takes advantage of a compact design that maximizes every square meter available: when not in use, the panel automatically retracts into its housing thanks to its robust integrated spring. This self-contained system instantly frees the full passage width required for equipment such as overhead cranes or pallet trucks, with no suspended obstacles since the curtain requires no ceiling mounting.

Daily operation is greatly simplified: an operator only needs to manually pull out the curtain and securely hook it onto the opposite support using the dedicated J-hook. When external intervention is required (for example, replacing a large workpiece), the panel can be unhooked and immediately retracts into its base, minimizing any operational disruption.

Another advantage lies in simplified maintenance: thanks to the innovative interchangeable hook system, replacing a damaged section requires no specialized tools and no prolonged production stoppage. The old panel is simply removed and its replacement installed immediately—an intuitive operation, even during intensive production cycles where every minute counts.

The self-supporting design offers complete freedom in initial positioning; it can be moved independently or combined with multiple other units as the industrial layout evolves, without requiring permanent modifications to existing infrastructure.

Customization and Versatile Applications to Meet Your Needs

Each industrial site has its own requirements for the temporary or permanent layout of protected welding areas. The RollTect system has been designed to meet these needs with flexibility. Customization covers both dimensions and functional aspects: widths up to 6 meters, adjustable heights according to local constraints, and a choice between transparent or opaque materials allow these screens to integrate seamlessly, whatever your specific requirements.

Applications go far beyond the traditional fixed workstation:

- Mobile cells: rapid isolation of areas according to project needs.
- Temporary configurations: occasional protection during exceptional interventions or off-line work.
- Modular separation: multiple panels interconnected directly around the same central post.
- Structural adaptation: installation possible not only between two mobile bases but also directly onto existing walls or industrial beams already present in your facilities.
- Targeted replacement: individual renewal only where needed, without the cost of a full system replacement.

This flexible operating approach saves valuable time during initial setup and future modifications, while ensuring ongoing compliance with standards applicable to MIG, TIG, and manual arc welding operations.

The RollTect retractable system combines operational efficiency, enhanced team safety, and daily logistical gains. These benefits are immediately apparent as soon as it is deployed on an active industrial site.
To explore its customization options or quickly receive a proposal tailored to your technical requirements, contact our specialized B2B professional welding team today.
