Exact Cut&Bevel 148
53616
€397.00
TTC
Achieve a flawless finish with one effortless process: the Exact Cut&Bevel 148 blade allows you to cut and bevel plastic pipes in a single, high-speed step.
Get register and you will earn 397 points/€19.85
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 397 points that can be converted into a voucher of €19.85.
Availabilities for Pick-up in store :
Cutting and bevelling plastic pipes in a single operation

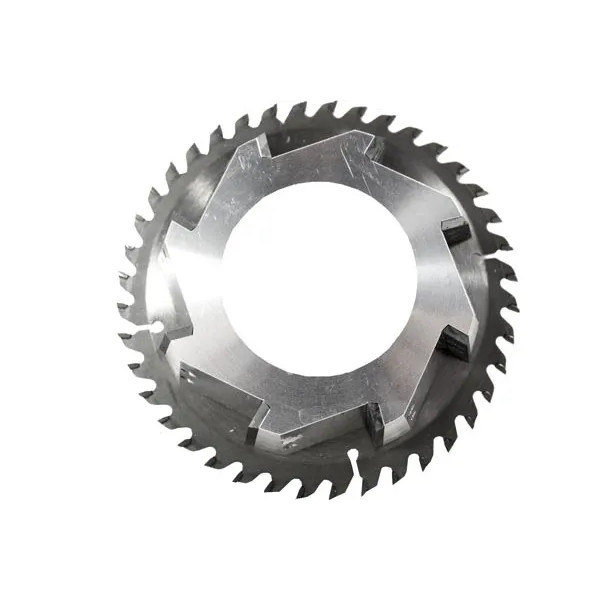

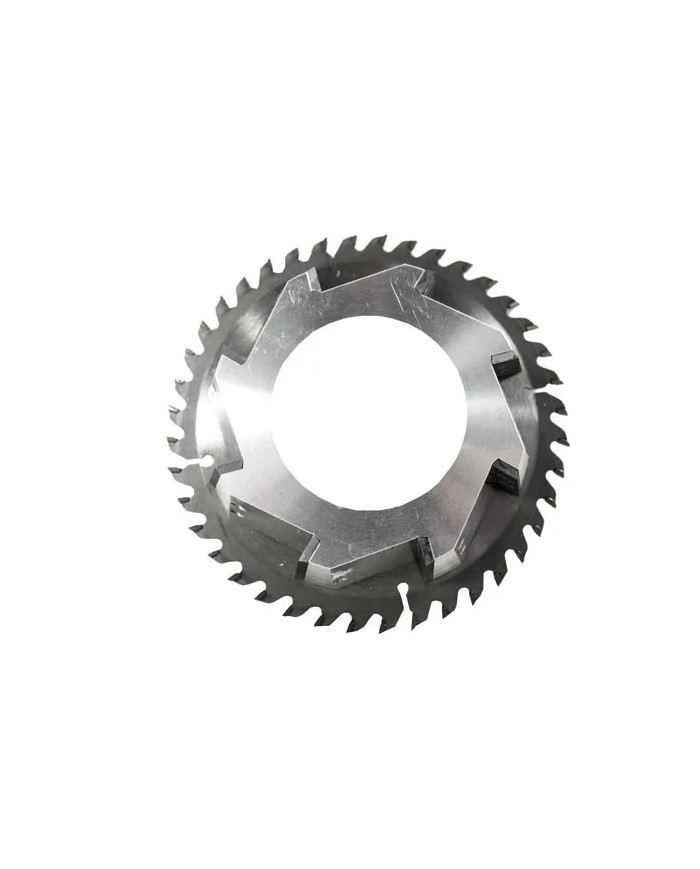

Exact Cut&Bevel 148 Blade for P400 — 15° Bevel
The Exact Cut&Bevel 148 blade combines cutting and bevelling to simplify plastic pipe preparation. Compatible with the Exact P400 machine, it is designed for wall thicknesses up to 22 mm. Its 40 teeth and eight reversible bevelling inserts allow both operations to be performed with the same tool.
Two Steps Combined
Cutting and bevel formation take place during the same process. This configuration reduces tool changes and handling when preparing pipe ends.
15° Bevel
The eight bevelling inserts produce a 15° angle. This preparation supports pipe assembly, provided the requirements of the connection and material used are met.
Reversible Bevelling Inserts
When an edge becomes worn, the insert can be reversed to use a fresh working edge. This design extends insert use without requiring immediate replacement of the entire blade.
Designed for the Exact P400 Machine
The Cut&Bevel 148 has a diameter of 148 mm and a bore of 62 mm. It is compatible with the 110 V and 220 V versions of the P400 for processing plastic pipes within the stated wall thickness limit.
Technical Specifications
- Brand: Exact
- Model: Cut&Bevel 148
- Blade diameter: 148 mm
- Bore diameter: 62 mm
- Number of teeth: 40
- Bevelling inserts: 8, reversible
- Bevel angle: 15°
- Stated maximum wall thickness: 22 mm
- Compatible machine: Exact P400
- Machine versions: 110 V / 220 V
Application: simultaneous cutting and bevelling of plastic pipes in the workshop or on site. Check material compatibility and follow the manufacturer’s instructions for installation and use.
Why Choose This Model?
Simplified Pipe End Preparation
A dedicated P400 blade combining cutting with a 15° bevel, with reversible inserts that allow multiple working edges to be used.
- Combined cutting and bevelling
- 148 mm diameter — 62 mm bore
- 40 teeth and eight reversible inserts
- Plastic pipe walls up to 22 mm
