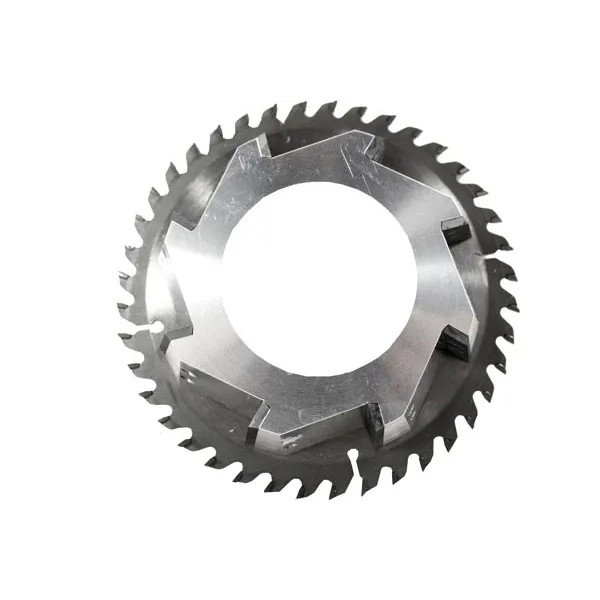

Exact Cut&Bevel 190 Blade
53617
€420.00
TTC
he Cut&Bevel 190 blade delivers flawless cutting and bevelling of plastic pipes in one effortless process. Designed for use with the P1000 machine, it handles plastic materials up to 40 mm thick. It features reversible bevelling tips to ensure consistent precision and an extended blade life.
Get register and you will earn 420 points/€21.00
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 420 points that can be converted into a voucher of €21.00.
Availabilities for Pick-up in store :
Cutting and bevelling plastic pipes in a single operation
Exact Cut&Bevel 190 Blade for P1000 — 15° Bevel
The Exact Cut&Bevel 190 blade combines cutting and bevelling plastic pipes to reduce preparation steps. Compatible with the P1000 machine, it is designed for wall thicknesses up to 40 mm. Its eight reversible bevelling inserts allow a fresh cutting edge to be used when the previous one becomes worn.
Two Operations Combined
Cutting and bevelling take place during the same process. This configuration reduces the handling required to prepare plastic pipe ends.
15° Bevel
The blade combines 45 cutting teeth with eight bevelling inserts to produce a 15° bevel. It helps prepare pipes before assembly, according to the requirements of the intended connection.
Reversible Bevelling Inserts
When their working edge becomes dull, the inserts can be reversed to use another edge. This design extends their use without requiring immediate replacement of the entire blade.
Designed for the P1000 Machine
With a diameter of 190 mm and a bore of 62 mm, the Cut&Bevel 190 is intended for the P1000. The stated maximum wall thickness for plastic pipes is 40 mm.
Technical Specifications
- Brand: Exact
- Model: Cut&Bevel 190
- Product reference: 7048133
- Blade diameter: 190 mm
- Bore diameter: 62 mm
- Number of teeth: 45
- Bevelling inserts: 8, reversible
- Bevel angle: 15°
- Stated maximum wall thickness: 40 mm
- Machine compatibility: P1000
Application: simultaneous cutting and bevelling of plastic pipes. Check that the blade is suitable for the material and the operating conditions specified by the manufacturer.
Why Choose This Model?
Fewer Steps to Prepare Your Pipes
A dedicated P1000 blade combining cutting with a 15° bevel, with reversible inserts that allow multiple working edges to be used.
- Combined cutting and bevelling
- 190 mm diameter — 62 mm bore
- Eight reversible inserts
- Plastic pipe walls up to 40 mm
