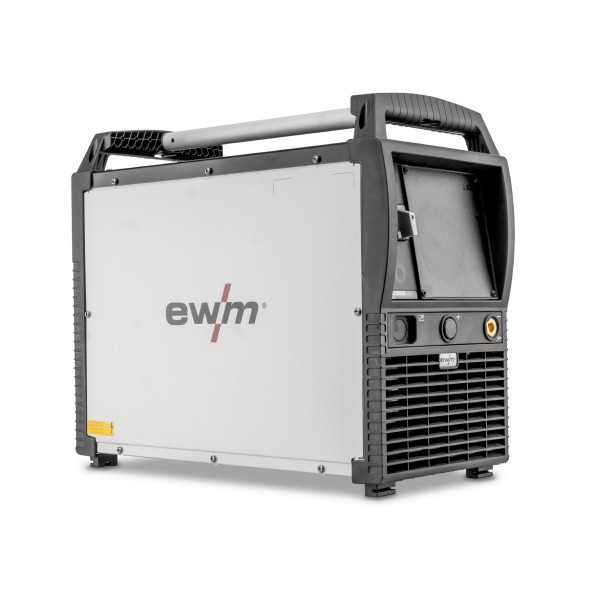

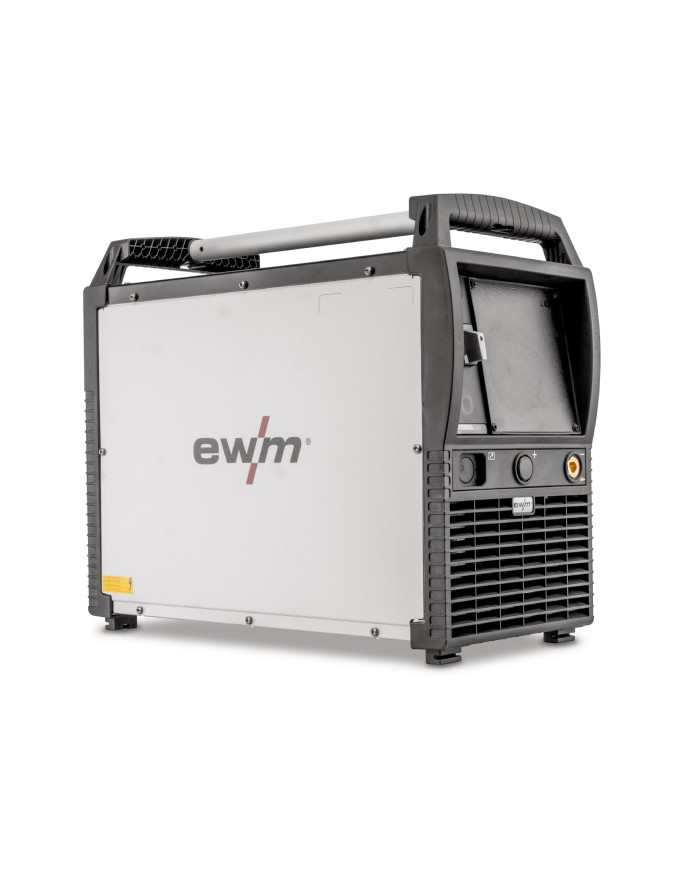

Taurus XQ 405 Basic D – 400 A MIG/MAG Inverter Welding Power Source
53627
€3,808.80
TTC
€4,140.00
Essential accessories
Option
The Taurus XQ 405 Basic D is a professional MIG/MAG inverter welding power source designed for demanding industrial work.
Get register and you will earn 3809 points/€190.45
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 3809 points that can be converted into a voucher of €190.45.
Availabilities for Pick-up in store :
Multiprocess MIG/MAG with manual adjustment
Taurus XQ 405 Basic D Welder — 400 A
The Taurus XQ 405 Basic D offers a current range of 5 to 400 A for MIG/MAG, MMA, TIG and gouging. Manual adjustment keeps you in control of the parameters, with arc stability suited to work using long welding cable assemblies.
Control over Your Settings
Manually adjust the operating point and arc dynamics to suit the application. Adjustable start and end crater functions allow you to tailor these stages of the welding cycle.
Performance for Sustained Work
At 40 °C, the duty cycle reaches 400 A at 60% and 350 A at 100%. Inverter technology provides 90% efficiency, complemented by a standby function to reduce idle power consumption.
Choice of Cooling Configuration
The power source can be used with a gas-cooled torch or a water-cooled torch using the optional cool50 cooling unit. The cooler is powered directly by the power source, without an additional mains connection.
Workshop-Ready Equipment
Polarity can be changed without tools. The welder features IP23 protection, an insulated wire compartment and connections for a remote control or an up/down control torch.
Key Specifications
- Factory-set power supply: three-phase 380–400 V, 50/60 Hz
- Mains voltage tolerance: −25% to +20%
- Recommended generator rating: 23.2 kVA
- Dimensions: 625 × 298 × 531 mm
- Weight: 39.4 kg
- IP23 protection — EMC class A
Why Choose This Model?
350 A at 100% Duty Cycle with Manual Adjustment
A multiprocess power source for structural metalwork, industrial maintenance and repairs, including work with long welding cable assemblies.
- Current range: 5 to 400 A
- 400 A at 60% duty cycle at 40 °C
- MIG/MAG, MMA, TIG and gouging
- Optional cool50 cooling unit
