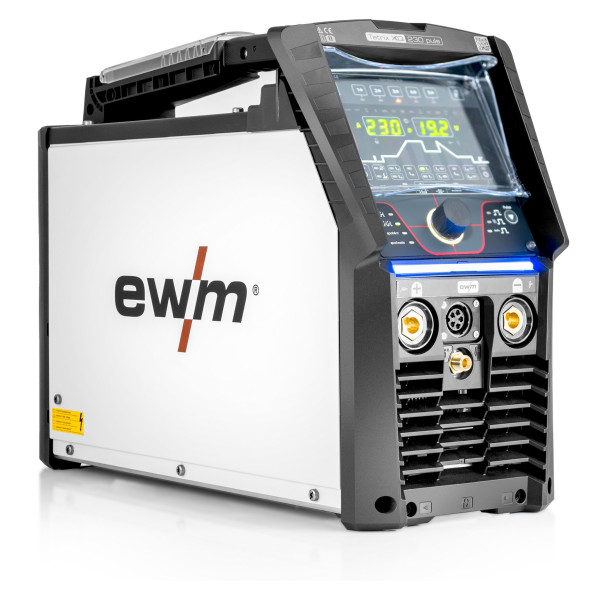

TIG Welding Machine EWM TETRIX XQ 230 AC/DC, 220 V Single Phase

Name: TIG Welding Machine EWM TETRIX XQ 230 AC/DC, 220 V Single Phase
Brand: EWM
SKU: 090-005631-00002
Price: 5696 EUR
Availability: InStock

€5,696.00 TTC

Essential accessories

Option

		Gas hose for EWM TIG - MIG welding machines - Length 3 m €27.00
		Flexible TIG Torch 150A 8m with 2 Pole Plug - Leather EWM €216.00
		Ground Clamp 35 mm² 290A/60% - L 4m €58.80
		Regulator for bottle with manometer Proreg Ar/CO2 230 bar 30l D €105.00
		Cooler Cool XQ 40 €1,396.80
		Trolly XQ 35-3 €547.00

EWM's new TIG welding power source takes TIG welding to the next level. It allows you to benefit from state-of-the-art technology for optimal welding results with perfect weld seams.

Get register and you will earn 5696 points/€284.80 (Each €1.00 spent = 1 point, 1 point = €0.05 discount).
Your cart will total 5696 points that can be converted into a voucher of €284.80.

Availabilities for Pick-up in store :

Select your Pick-up store

Description

AC/DC TIG and MMA on a single-phase supply

EWM TETRIX XQ 230 AC/DC Welder

The TETRIX XQ 230 AC/DC offers a current range of 3 to 230 A in TIG mode and 5 to 190 A in MMA mode. Powered by a single-phase 230 V supply with PFC technology, this 19 kg power source is supplied on its own, ready to be equipped with accessories suited to your work.

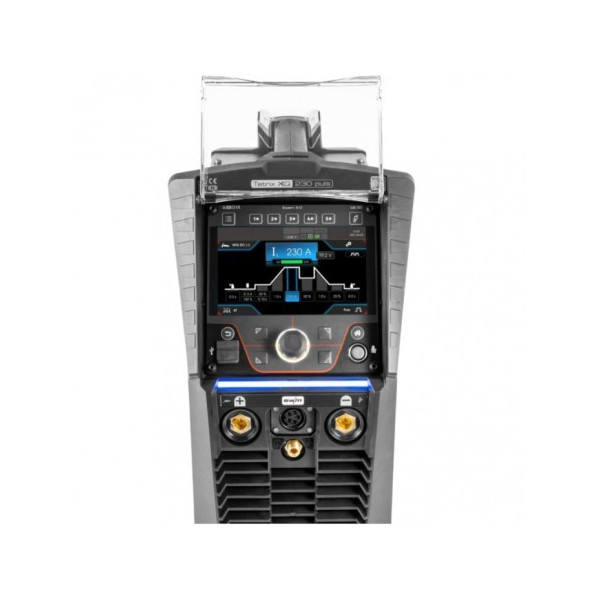

Intuitive Expert 3.0 Controls

The 7-inch high-resolution colour display shows parameters and diagrams. The click wheel and push buttons allow operation with welding gloves, without a touchscreen.

Accessible, Customisable Settings

Five favourites buttons provide easy access to essential functions. The Xbutton system manages individual access permissions, while the USB interface enables software updates. A remote control interface is included as standard.

TIG and MMA Performance

At 40 °C, TIG output reaches 230 A at a 40% duty cycle, 200 A at 60% and 170 A at 100%. In MMA mode, the duty cycle reaches 190 A at 35%, 150 A at 60% and 120 A at 100%. Up to four pulse variants are available.

Power Supply Flexibility for Site Work

PFC supports operation on weak mains supplies, long extension cables or a generator. Mains voltage tolerance ranges from −40% to +15%, with a recommended generator rating of 8.8 kVA.
