TIG AC/DC welding machine Tetrix XQ pulsed 230 A Comfort 3.0 5P
53634
€4,876.00
TTC
€5,300.00
Essential accessories
Option
The Tetrix XQ 230 puls AC/DC Comfort 3.0 5P is a new-generation modular TIG AC/DC inverter welding power source built for professionals who need accuracy, control and reliable power. With a welding current range from 3 to 230 A, pulsed TIG, activArc®, spotArc® and factory preparation for water cooling, it is ready for demanding workshop, fabrication and site applications.
Add to Compare
Get register and you will earn 4876 points/€243.80
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).
Your cart will total 4876 points that can be converted into a voucher of €243.80.
Get register and you will earn 4876 points/€243.80
(Each €1.00 spent = 1 point, 1 point = €0.05 discount).Your cart will total 4876 points that can be converted into a voucher of €243.80.
Availabilities for Pick-up in store :
SAV by HD Soudage
Secure payment
Delivery in 24H
Payment in 3 or 4 instalments
Read more

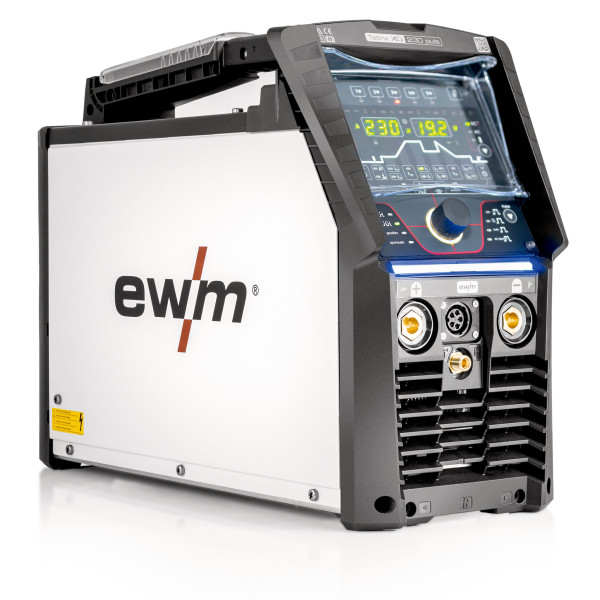

TIG AC/DC welding machine Tetrix XQ pulsed 230 A Comfort 3.0 5P
The Tetrix XQ 230 puls AC/DC Comfort 3.0 5P represents a new generation of modular TIG AC/DC welding inverters. Designed for professional welding environments, it combines modern inverter stability, advanced arc control and a rugged build suited to fabrication, maintenance, pipework, metalworking and aluminium applications.
Its 3 A to 230 A welding current range gives operators the flexibility to work on thin materials as well as higher-power assemblies. In TIG AC/DC, TIG DC and pulsed TIG modes, the arc remains precise, stable and responsive. activArc® and spotArc® support controlled heat input, repeatable tack welds and high-quality bead appearance.
Processes and functions
- TIG AC/DC for aluminium and alloy welding.
- TIG DC for steel, stainless steel and common industrial materials.
- Pulsed TIG for thermal control and consistent weld beads.
- activArc® for a focused, dynamic arc.
- spotArc® for repeatable spot welding.
- MMA welding, pulsed MMA, MMA Cel and pulsed MMA Cel.
Modular power source for workshop and site welding
Factory-prepared for connection to a water cooler, this welding system offers strong upgrade flexibility. The cooling module is powered directly by the welding machine, so no additional mains connection is required for the cooler. This design simplifies setup and supports clean integration into professional welding stations.
The LED status bar uses colours to indicate the current operating state, giving the operator fast visual feedback. The rugged housing with impact-resistant plastic cover protects the machine during transport and intensive daily use. The temperature and speed-controlled cooling fan reduces contamination and noise by operating only when required.
Rugged, mobile and ready for connected welding
With IP23 protection, the Tetrix XQ 230 puls AC/DC Comfort 3.0 5P is protected against spray water. It is suitable for generator operation, even with long mains cables, and offers high mains voltage tolerance for demanding field conditions. A consumables compartment in the handle keeps torch wear parts protected and within easy reach.
For connected welding environments, the unit can be linked as an option to ewm Xnet software via LAN or Wi-Fi gateway. This supports structured welding management, documentation and traceability.
Key advantages
- New-generation modular TIG AC/DC inverter welding machine.
- 3 A to 230 A welding current adjustment range.
- TIG AC/DC, TIG DC, pulsed TIG and MMA welding processes.
- Advanced activArc® and spotArc® functions.
- Factory-prepared for water cooler connection.
- Cooling module powered by the welding machine.
- LED status bar with colour signal display.
- Rugged housing with impact-resistant plastic cover.
- Temperature and speed-controlled fan for reduced noise and contamination.
- IP23 protection against spray water.
- Suitable for generator operation, even with long mains cables.
- Optional connection to ewm Xnet via LAN or Wi-Fi gateway.
- 3.5 m mains cable with 16 A Schuko safety plug.
Technical specifications
| Welding current adjustment range | 3 A - 230 A |
|---|---|
| Duty cycle at 40 °C | 230 A / 40 % ; 200 A / 60 % ; 170 A / 100 % |
| Duty cycle at 110 V - 120 V | 170 A / 40 % ; 150 A / 60 % ; 120 A / 100 % |
| Open-circuit voltage | 96 V |
| Mains voltage, factory setting | 1 x 230 V |
| Possible mains voltage | 1 x 110 V - 120 V |
| Mains tolerance, factory setting | -40 % to +15 % |
| Mains tolerance at 110 V - 120 V | -15 % to +15 % |
| Mains frequency | 50 Hz / 60 Hz |
| Recommended generator power | 7.4 kVA |
| Recommended generator power at 110 V - 120 V | 4.7 kVA |
| Efficiency | 83 % |
| Power consumption Pi | 31 W |
| Protection rating | IP23 |
| EMC class | A |
| Dimensions | 550 mm x 257 mm x 415 mm / 21.7 inch x 10.1 inch x 16.3 inch |
| Weight | 19.2 kg / 42.3 lbs |
| Standards | IEC 60974-1, IEC 60974-3, IEC 60974-10 CL.A |
Recommended applications
This welding power source is designed for metal fabrication shops, industrial maintenance teams, pipe welders, sheet metal specialists and professional welders looking for a high-performance TIG AC/DC solution for aluminium, stainless steel and steel. Its compact format, 19.2 kg weight and generator compatibility make it suitable for both fixed welding stations and mobile work on site.
